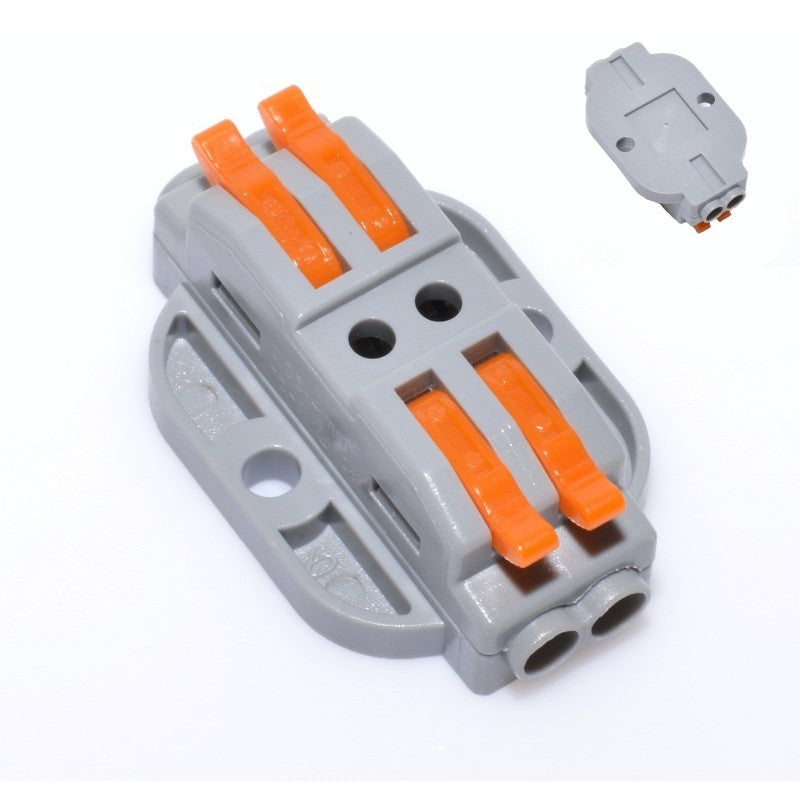

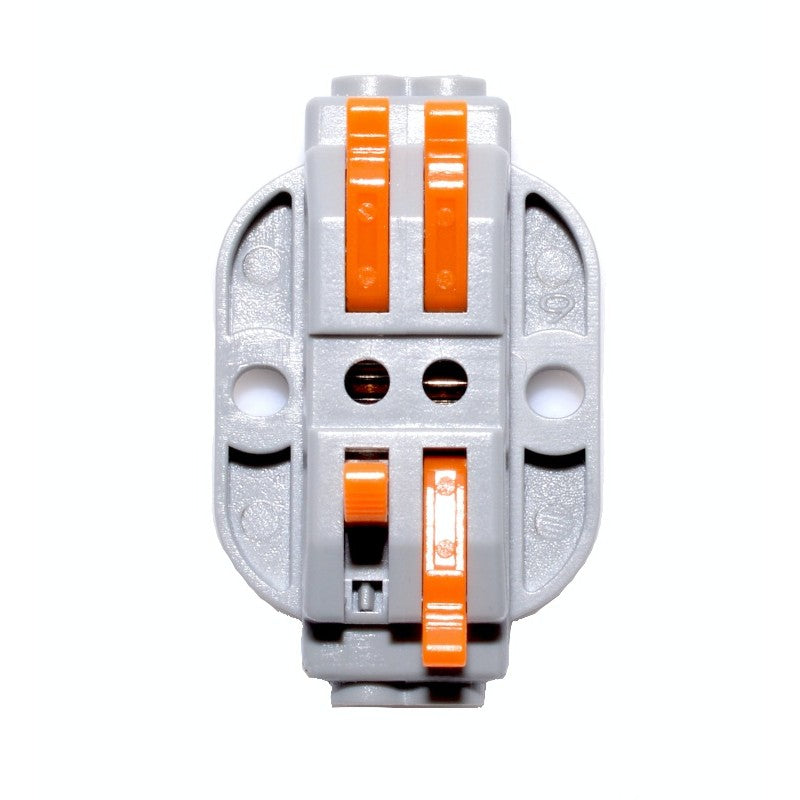

Connector Socket 2-2 for Cable, LT-223/2

Connector Socket 2-2 for Cable, LT-223/2

Wago type LT-223/2 connector for 2 wires is an efficient and versatile connection plug used in electrical junction boxes or electrical apparatus. Designed to facilitate wire bonding, this connector is ideal for solid or soldered wires with sections between 0.08-4mm².

Features and Usage:

• Simple Connection: The connector can be used to connect two wires, being suitable for the ends of four wires.
• Compact and Easy to Use: The compact design allows use in confined spaces, being ideal for junction boxes or electrical apparatus.
• Quick Connection: Clamping levers make it easy to connect wires, and inserting the cable and leaving the levers on the connector makes the connection fast and efficient.
• Easy Removal: Wire removal is done without pulling, by lifting the lever, releasing the pressure of the clamp pressing on the wire.
• Advanced Technology: Uses CAGE CLAMP® technology for a secure and stable connection.
• Compatibility with Various Conductor Types: Can be used for both solid conductors and stranded wires.

Technical Details:

• Number of Connection Wires: 2

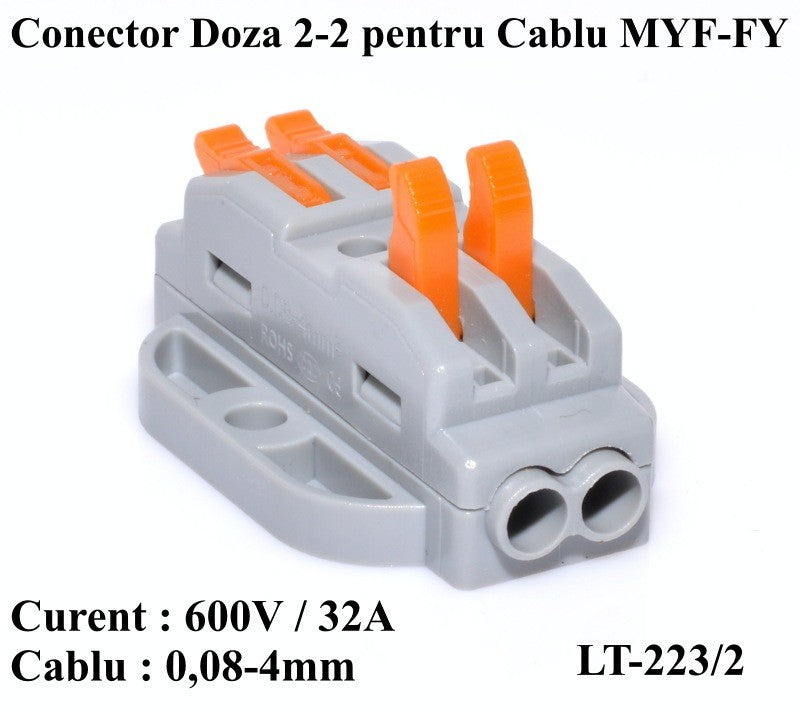

• Nominal Voltage: 600V
• Rated Current: 32A
• Dimensions: 42 x 14/25 x 15mm
• Material: Fireproof ABS
• Material Contacts: Silver-plated brass
• Conductor Cable:

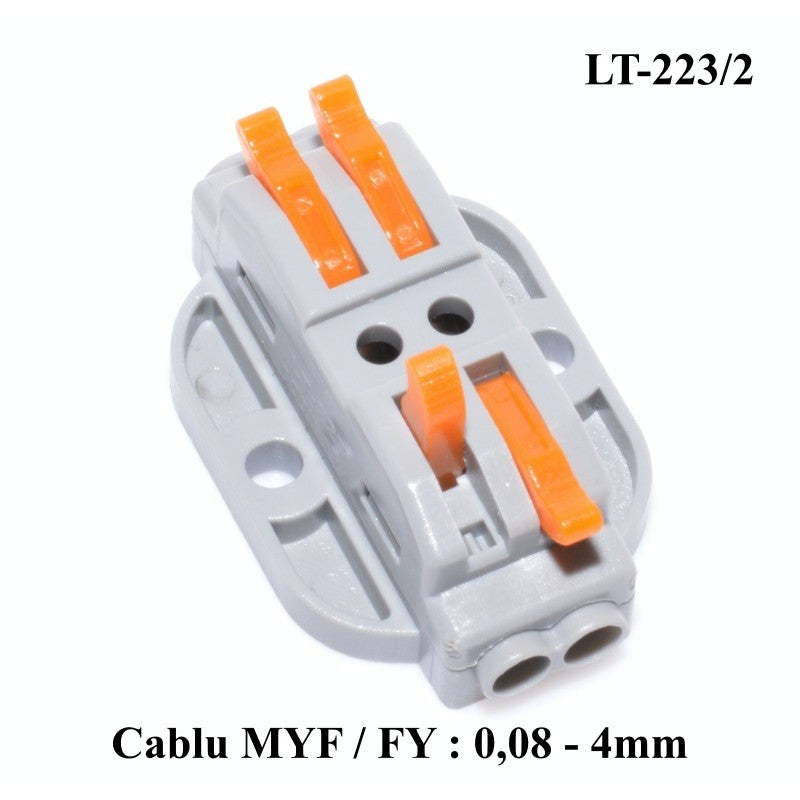

  • Dur (BV): 0,08-4,0mm²
  • Multifilar Dur (BVR): 0,08-4,0mm²
  • Flexible Multifilar (RV): 0.08-4.0mm²
• Continuous Operating Temperature: 85°C
• Manufactured under Standards: ROHS, CE, CQC

Package Contents:

• 1 x Connector Socket 2-2 for Cable, LT-223/2
