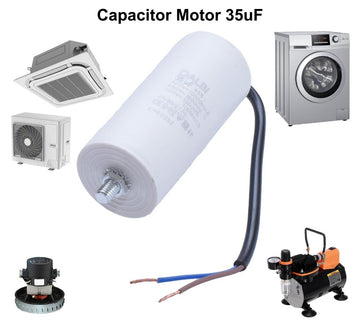

Motor Capacitor with Screws and Wires - 35uf / 450V
Screw and Wire Motor Capacitor - 35uF/450V
The capacitor or capacitor is encapsulated in a plastic case, provided with a screw and wires for voltage supply. This type of capacitor is mainly used when starting electric motors in various equipment, such as air conditioner motors, fans, refrigerators, mowers, compressors, water pumps, etc.
Technical Details:
-
Alternative Nominal Voltage: 400V AC, 450V AC, 500V AC
- 400V - 10000h / class B
- 450V - 3000h / class C
- 500V - 120/20% 1000h / class D
- Nominal Frequency: 50 - 60 Hz
- Capacity: 35 uF
- Tolerance: ±5%
- Connection Type: Wired
- Number of Threads: 2
- Shape: Cylindrical
- Material: Plastic
- Attachment: With screw
- Dissipation Factors: ≤0.002 (1KHz, 20℃)
- Operating Temperature: -40 ℃ ~ +85 ℃ or -40 ℃ ~ +70 ℃
- Flammability Class: UL 94 V -2, 750C (RTI)
- Dielectric: SH self-healing polypropylene
- Insulation Resistance: ≥3000S
- Withstand Voltage (Terminal to Terminal): 2 X Rated Voltage
- Voltage Withstand (Terminal to Case): Minimum 2000 V AC for 1 minute
- Quality System: ISO 9001: 2008
- Accreditation: CE, Rohs
Attention: Installation must only be carried out by an authorized electrician. Before installation, it is recommended to check the voltage indicated on the product.
Package Contents:
- 1 x Screw and Wire Motor Capacitor - 35uF / 450V
