Motor Capacitor with Screws and Wires - 7.5uf/450V

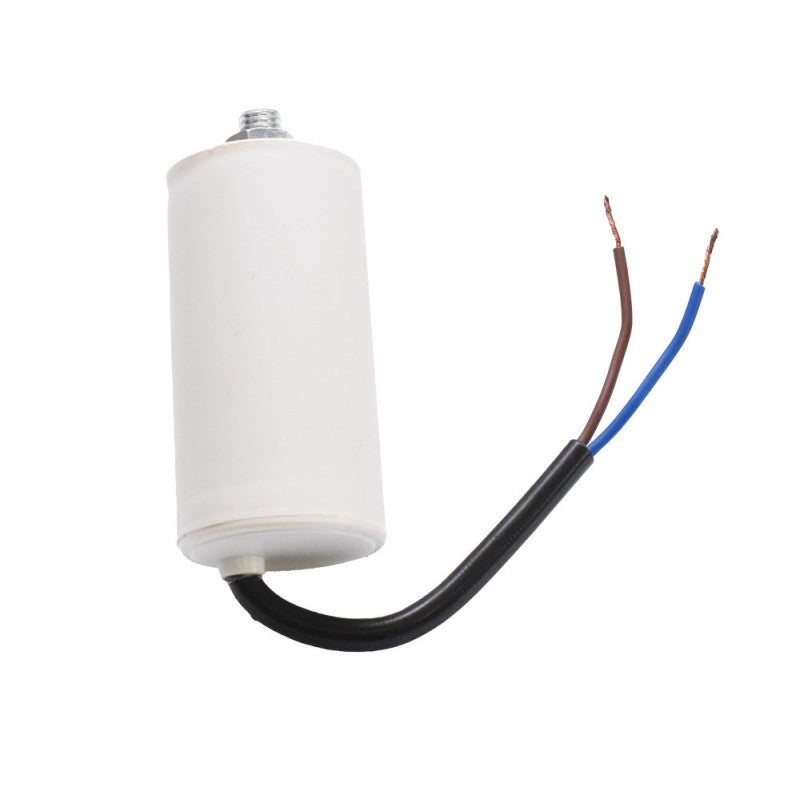

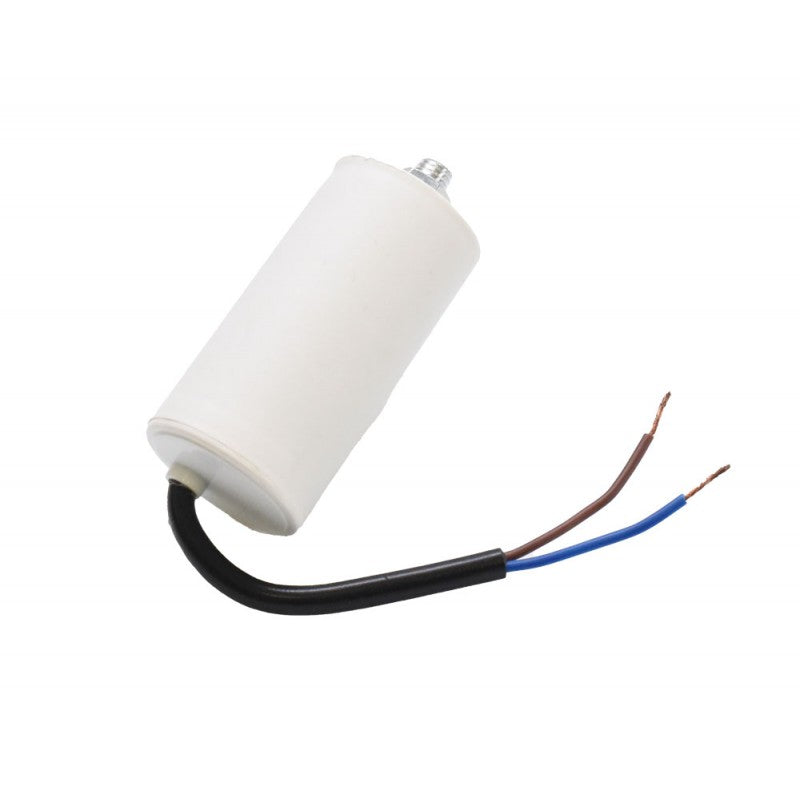

Screw and Wire Motor Capacitor - 7.5uF/450V

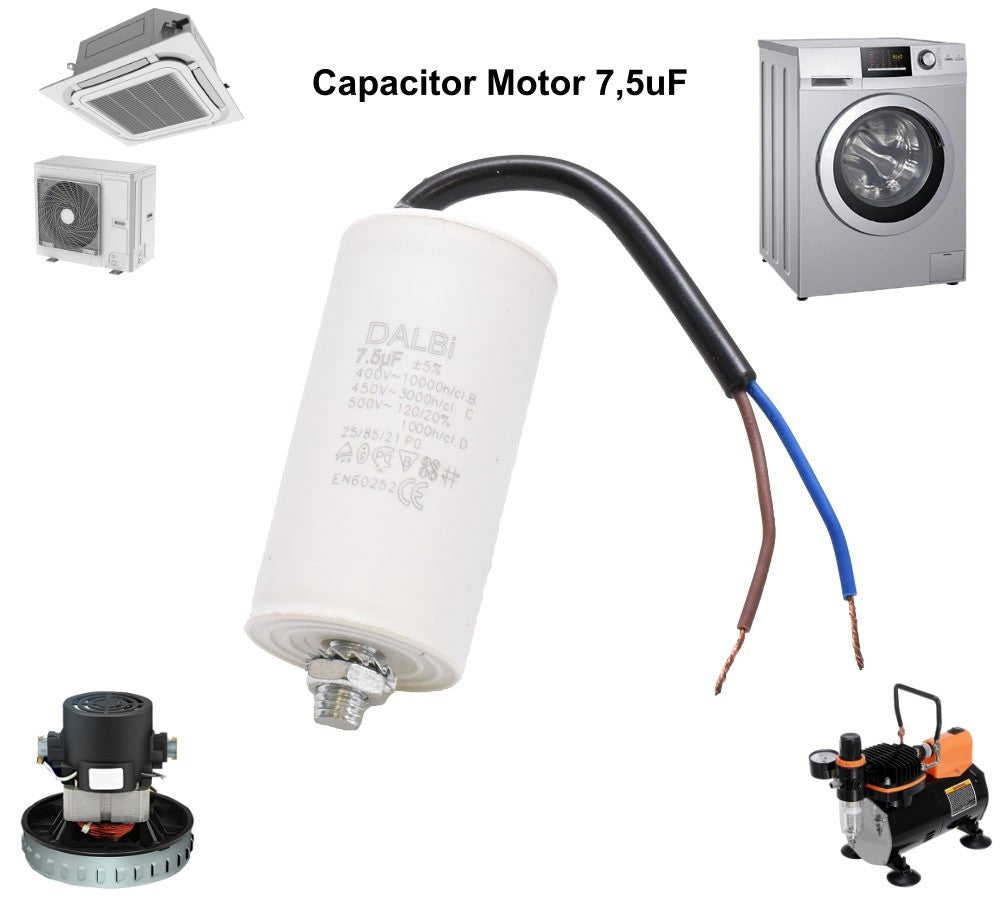

The 7.5uF capacitor or capacitor is encapsulated in a plastic housing with screw-in and lead-in wires. This type of capacitor is used to start electric motors, such as those in air conditioners, fans, refrigerators, mowers, compressors, water pumps, car compressors, etc.
Technical Details:
-
Alternative Rated Voltage: 400V AC, 450V AC, 500V AC
- 400V - 10000h / Class B
- 450V - 3000h / Class C
- 500V - 120/20% 1000h / Class D
- Nominal Frequency: 50 - 60 Hz
- Capacity: 7.5 uF
- Tolerance: ±5%
- Connection Type: Wires
- Number of Threads: 2
- Shape: Cylindrical
- Material: Plastic
- Attachment: With screw
- Dissipation Factors: ≤0.002 (1KHz, 20℃)
- Operating Temperature: -40 ℃ ~ +85 ℃ or -40 ℃ ~ +70 ℃
- Flammability Class: UL 94 V -2, 750C (RTI)
- Dielectric: SH self-healing polypropylene
- Insulation Resistance: ≥3000S
- Withstand Voltage (Terminal to Terminal): 2 X Rated Voltage
- Voltage Withstand (Terminal to Case): Minimum 2000 V AC for 1 minute
- Quality System: ISO 9001: 2008
- Accreditation: CE, Rohs
Caution: Installation must only be carried out by an authorized electrician. Before installation, it is recommended to check the voltage indicated on the product.
Package Contents:
- 1 x Screw and Wire Motor Capacitor - 7.5uF / 450V
