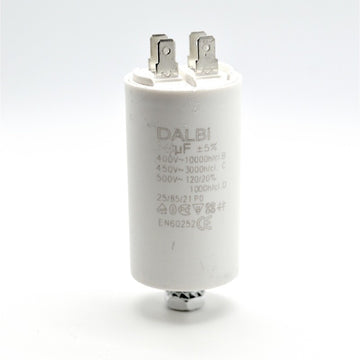

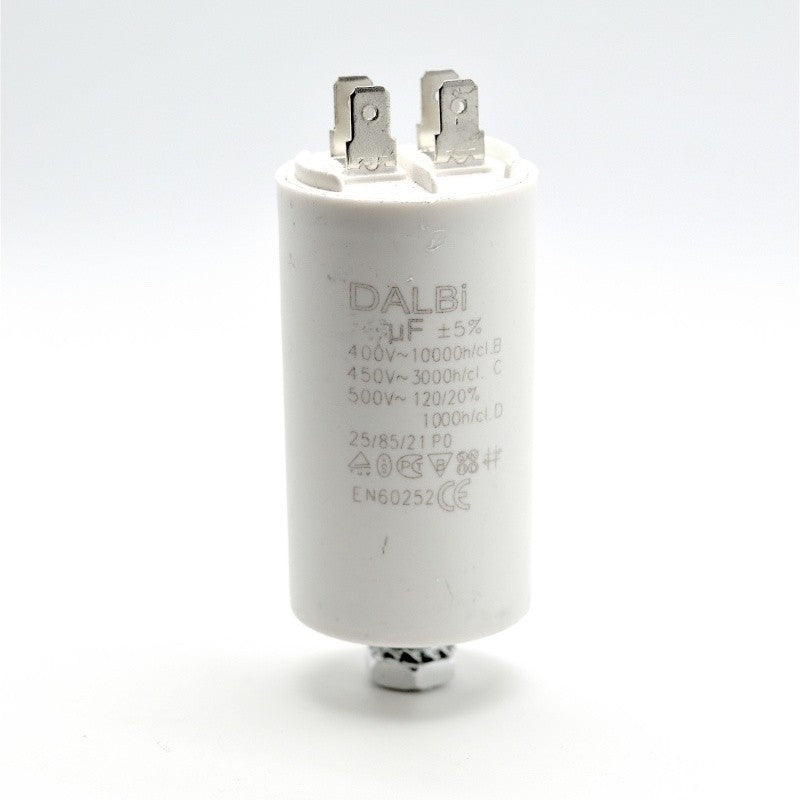

Motor Start Capacitor 450V - 100uf

Motor Start Capacitor/100uf - 450V

Encapsulated capacitor with plastic case and contact through male shoes.

This capacitor is useful for starting electric motors like:

for air conditioning, cooling fans for refrigerators, refrigeration units, radiator fans,

power engines, chainsaws, compressors, water pumps, car compressors, etc.

These capacitors are used in almost all types of electric motors.

The capacitor has a screw with a nut that helps to fix it on different supports.

Technical details:

Nominal alternative voltage: 450V AC, 450V AC, 500V AC

400V - 10000h / cl B

450V - 3000h / cl C

500V - 120/20% 1000h / cl D

Nominal frequency: 50 - 60 Hz

Capacity: 100uf

Tolerance: + - 5%

Connection type: Dad slippers

Number of connectors: 4

Shape: Cylinder

Material: plastic

Dissipation factors ≤0.002 (1KHz, 20℃)

Operating temperature: -40 ℃ ~ + 85 ℃ or -40 ℃ ~ + 70 ℃

Flammability class: UL 94 V -2, 750C (RTI)

Self-healing polypropylene dielectric SH

Insulation resistance: ≥3000S

Withstand Voltage (Terminal to Terminal) 2 X Rated Voltage

Voltage withstand (Terminal to case) Minimum 2000 V AC for 1 min.

ISO 9001: 2008 quality system

RoHS accredited

Package Contents:

1 x Motor Start Capacitor/100uf - 450V
