Conector Doza 3+3 Fire 4KV / 32A, PCT-223

Conector Doza 3+3 Fire 4KV / 32A, PCT-223

The PCT 223 connector is a plug for connecting electrical wires of the ruler type, but without screws,

very easy connection that allows its use in the narrowest places, boxes, boxes, etc.

Being very useful for connecting solid or soldered wires with sections between 0.08-2.5mm.

The SPL connector can be used in connection with 6 wires connected two by two.

Often used in junction boxes or electrical equipment, because the connector

type wago is very compact and allows its use in small places.

The connection of the wires to the connector is very easy, lift the clamping levers,

insert the cable, then leave the levers on the connector, thus making the connection

of the connection between wires. Removing the threads is very easy by lifting the lever,

in this way, the pressure of the clamp pressing on the wire is released, allowing it to be removed without pulling.

Terminal block with 3 conductors; with 6 operating levers; max. continuous operating temperature 85 °C

Technical details:

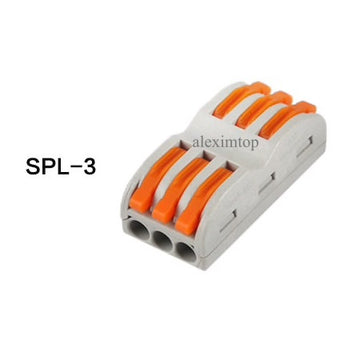

Model: SPL-3 / PCT 223

Rated voltage: 250V/4KV

Rated current: 32A

Rated power: 7KW

Size: 39x13.4x14.5mm

Single hard cable (BV) 0.08-4.0mm2

Hard cable (BVR) 0.08-4.0mm2

Flexible cable (RV) 0.08-4.0mm2

Package Contents:

1 x Conector Doza 3+3 Fire 4KV / 32A, PCT-223
