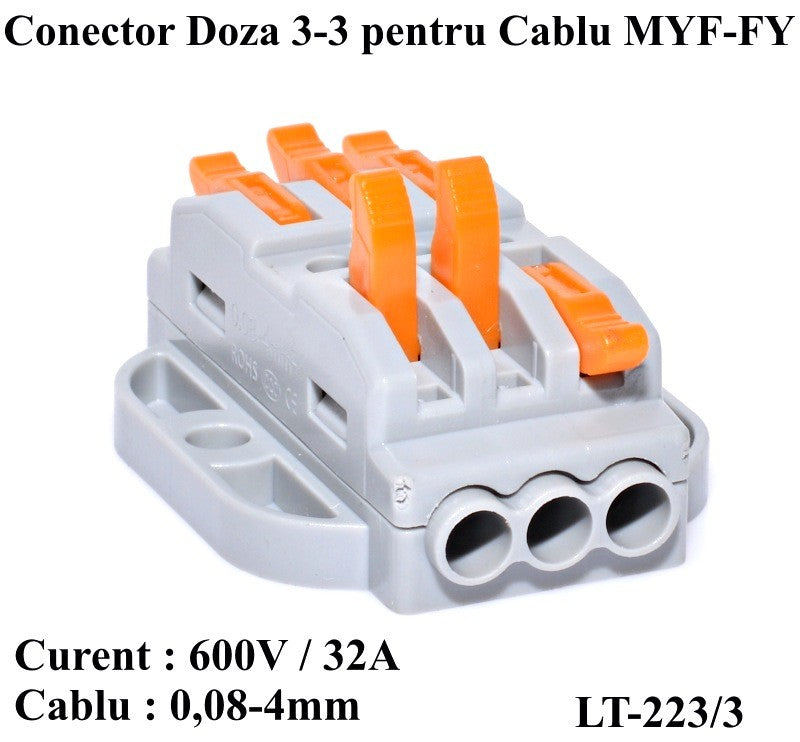

Connector Socket 3-3 for Cable, LT-223/3

Connector Socket 3-3 for Cable, LT-223/3

The LT-223/3 connector is a connecting device for MYF or FY cables, designed for use in electrical junction boxes or electrical apparatus. This connector has 3 ways with connection to the ends in the cylindrical housings, offering the possibility to connect 6 wires, two by two.

Features and Usage:

• Efficient Connection: The connector is intended for connecting 6 wires, being ideal for connecting them two by two.
• Compact and Easy to Use: The compact design makes this connector suitable for use in small spaces, often used in junction boxes or electrical apparatus.
• Quick Connection: Clamping levers make it easy to connect wires, and inserting the cable and leaving the levers on the connector makes the connection fast and efficient.
• Easy Removal: Wire removal is done without pulling, by lifting the lever, releasing the pressure of the clamp pressing on the wire.
• Durable Material: Made of flame retardant ABS plastic material for safety and durability.
• Compatibility With Various Conductor Types: It can be used for both solid conductors and hard or flexible multifilar wires.

Technical Details:

• 3-Way Terminal Block
• 6 Operating Levers
• Continuous Operating Temperature: 85 °C
• Nominal Voltage: 600V
• Rated Current: 32A
• Dimensions: 42mm x 19/31mm x 15mm
• Material: Fireproof ABS
• Material Contacts: Silvered brass
• Cablu Dur (BV): 0,08-4,0mm²
• Cablu Multifilar Dur (BVR): 0,08-4,0mm²
• Flexible Multicore Cable (RV): 0.08-4.0mm²
• Standarde: ROHS, CE, CQC

Package Contents:

• 1 x Connector Socket 3-3 for Cable, LT-223/3
