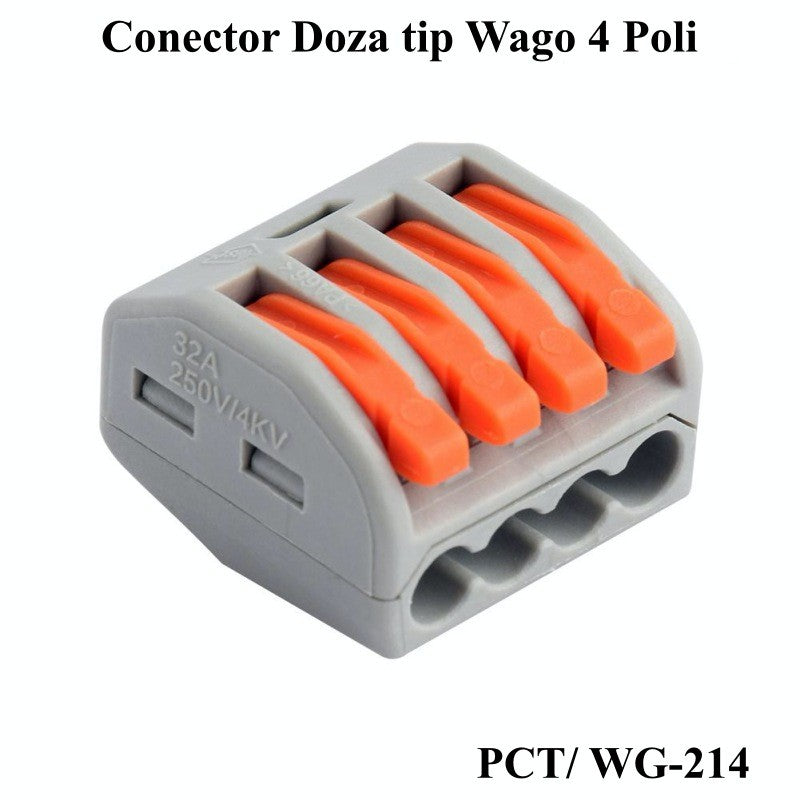

Conector Doza 4 Fire 4KV / 32A, PCT-214

Conector Doza 4 Fire 4KV / 32A, PCT-214

Wago type PCT-214 4-wire connector is an extremely useful connecting plug in the electrician's field. Designed for connecting solid or wide wires with sections between 0.08-2.5mm, this connector allows the connection of eight wires, multiplying the connection from one wire to three circuits.

Features and Usage:

• Efficient Connection: The connector is intended for connecting eight wires, being ideal for connecting them two by two.
• Compact and Easy to Use: The compact design makes this connector suitable for use in small spaces, often used in junction boxes or electrical apparatus.
• Quick Connection: Clamping levers make it easy to connect wires, and inserting the cable and leaving the levers on the connector makes the connection fast and efficient.
• Easy Removal: Wire removal is done without pulling, by lifting the lever, releasing the pressure of the clamp pressing on the wire.
• Durable Material: Made of plastic material, the connector is resistant to temperatures up to 85°C.
• Compatibility With Various Conductor Types: It can be used for both solid conductors and hard or flexible multifilar wires.

Technical Details:

• Total Number of Connection Points: 4
• Total Number of Potentials: 1
• Color: Gray
• Pollution Level: 2
• Nominal Voltage: 400V
• Rated Surge Voltage: 4kV
• Rated Current: 32A
• Conductor Type: Solid + Fine Catenary
• Cross Section of: 0.08 mm²
• Cross Section Up To: 2.5 mm²
• Cross Section from (2): 0.08 mm²
• Cross Section Up to (2): 4 mm²
• Width: 20mm
• Height: 20mm
• Length: 14mm

Package Contents:

• 1 x Conector Doza 4 Fire 4KV / 32A, PCT-214
