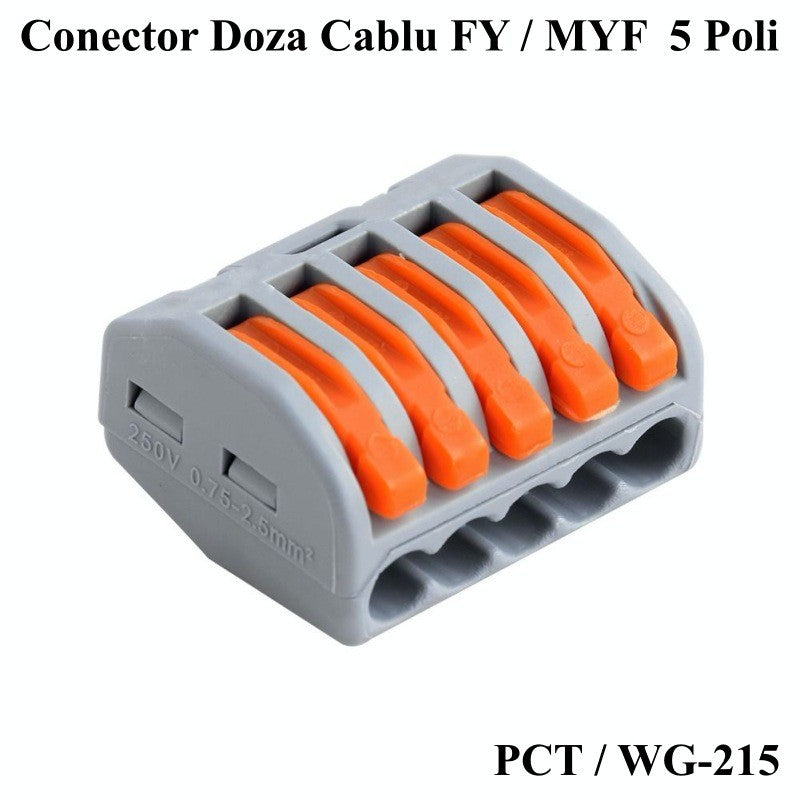

Conector Doza 5 Fire 4KV / 32A, PCT-215

Conector Doza 5 Fire 4KV / 32A, PCT-215

Wago type PCT-215 5-wire connector is a connecting plug designed to meet the needs of electricians in connecting solid or wide wires with sections between 0.08-2.5mm. This connector allows the connection of eight wires, multiplying the connection from 1 wire to 4 distinct circuits.

Features and Usage:

• Efficient Connection: Designed for connecting eight wires, connected two by two.
• Compact and Easy to Use: The compact design facilitates use in small spaces, being ideal for junction boxes or electrical apparatus.
• Quick Connect: Clamping levers allow for quick wire connection, and inserting the cable and letting the levers onto the connector makes the bonding connection between the wires.
• Easy Removal: Wires can be easily removed by lifting the lever, releasing the clamp pressure on the wire.
• Durable Material: Made of durable material, it allows use in various environmental conditions.
• Compatibility With Various Conductor Types: It can be used for solid conductors, hard stranded wires (BVR) or flexible stranded wires (RV).
• Safety Standards: Pollution degree 2, Rated voltage 400V, Rated surge voltage 4kV.
• Continuous Operating Temperature: 85 °C.

Technical Details:

• Total Number of Connection Points: 5
• Total Number of Potentials: 1
• Color: Gray
• Nominal Voltage: 400V
• Rated Surge Voltage: 4kV
• Rated Current: 32A
• Tip Conductor: Solid + Catenar fin
• Cross Section (Conductor 1): 0.08 mm² to 2.5 mm²
• Cross Section (Conductor 2): 0.08 mm² to 4 mm²
• Harness Type: Side entry harness
• Dimensions: 25mm (Width) x 20mm (Height) x 14mm (Length)
• Weight: 4.2g

Package Contents:

• 1 x Conector Doza 5 Fire 4KV / 32A, PCT-215
