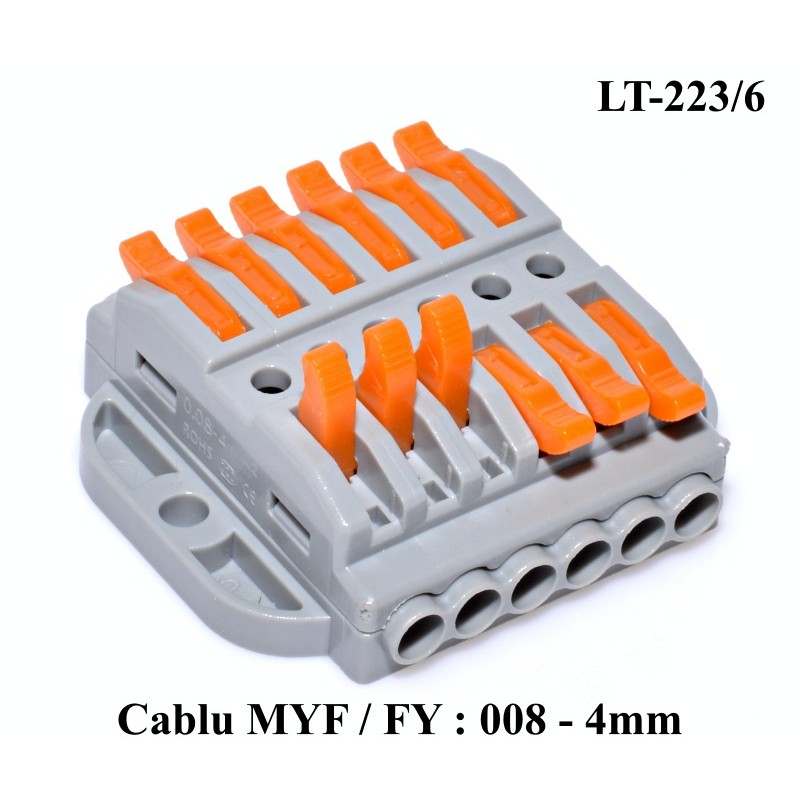

Connector Socket 6-6 for Cable, LT-223/6

Connector Socket 6-6 for Cable, LT-223/6

Wago type LT-223/6 connector is a connection plug designed for connecting electrical wires without requiring screwing. With 6 connection ways and 12 operating levers, this connector is very useful for connecting solid or wide wires, such as MYF/FY, with sections between 0.08-4mm.

Features and Usage:

• Efficient Connection: The connector allows the connection of 12 wires, connected two by two, being ideal for use in junction boxes or electrical devices.
• Compact and Easy to Use: The compact design facilitates use in small spaces, and the clamping levers allow for quick and easy wire connection.
• Quick and Easy Connection: Lifting the clamping levers, inserting the cable and leaving the levers on the connector makes it easy to connect the wires.
• Easy Removal: Threads can be pulled out effortlessly by lifting the lever, releasing the clamp pressure on the thread.
• Durable and Safety Material: Made of flame retardant ABS and contacts are silver plated brass. According to ROHS, CE, CQC standards.
• Compatibility With Various Conductor Types: It can be used for solid conductors, hard stranded wires (BVR) or flexible stranded wires (RV).
• Safety Standards: Rated voltage 600V, rated current 32A, continuous operating temperature 85 °C.

Technical Details:

• 6-Way Terminal Block
• 12 Operating Levers
• Dimensions: 42mm (Width) x 34/46mm (Height) x 15mm (Length)
• Material Contacts: Silver plated brass
• Material: Fireproof ABS
• Compatible Cable: Hard (BV) 0.08-4.0mm2, hard multiwire (BVR) 0.08-4.0mm2, flexible multiwire (RV) 0 .08-4.0mm2

Package Contents:

• 1 x Connector Socket 6-6 for Cable, LT-223/6
