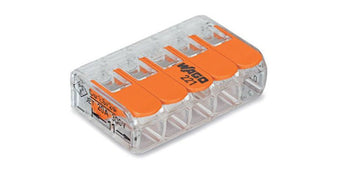

Conector Doza NOU 5 Fire 4KV / 32A, PCT-415

Conector Doza NOU 5 Fire 4KV / 32A, PCT-415

The new PCT-415 connector is an innovative solution for connecting electrical wires, bringing new standards of performance and efficiency. With a 40% smaller and easier to use design than its predecessor in the 215 series, this connector provides fast and reliable connection of solid or soldered wires in electrical installations.

Features and Usage:

• Reduced Dimensions: Compact design, suitable for applications with limited space, reducing the need for space in junction boxes.
• Universal Compatibility: Suitable for all types of electrical wires, including solid and stranded wires, with sizes between 0.14 mm² and 4 mm² (24-12 AWG).
• Fast and Reliable Connection: Installation is quick and easy by pushing the wires into the connector, ensuring a solid connection.
• Transparent Housing: The transparent housing allows for clear viewing of the connections, ensuring that the wires are properly connected and at the correct length.
• Two Test Ports: Two easily accessible test ports make testing easy, even after installation.
• Additional Protection: Press clips provide additional protection and facilitate wire removal by releasing the lever, eliminating pressure on the wires.

Technical Details:

• Model: 5 Poli 415
• 5-Hole Connector
• Permitted Wire Size: 0.14 mm² to 4 mm² (24-12 AWG)
• Rated Current/Voltage: 32 A/450V, 105 °C
• Operating Temperature: Up to 85 °C (T85)

Package Contents:

• 1 x Conector Doza NOU 5 Fire 4KV / 32A, PCT-415
