Controller with Lever 2 Positions no-no with Return / XD2PA22
-
Estimated Delivery:Apr 27 - May 01
-
Free Delivery: Any order over 300 lei

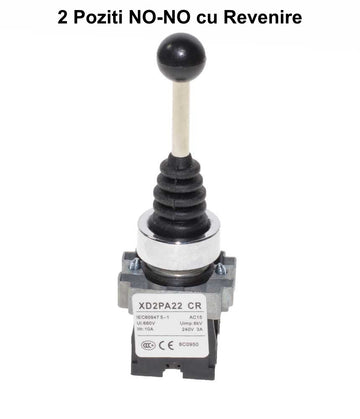

Controller with Lever 2 Positions no-no with Return / XD2PA22
Controller with Lever 2 Positions No-No with Return / XD2-PA22
Switch - Joystick type switch with control lever in two positions
which have a NO-NO return contact.
It can be used in multiple fields: industrial, factory machines, line machines,
extrusions, punching, injection, etc.
Technical details:
Mounting diameter: 22mm
Material rama: metal cromat
(IE) Rated operating current: 0.27A at 250V DC-13, Q300
Compliance with SR EN60947 5-1, 3A at 240V AC-15, A300
(UI) Nominal insulation voltage: 500V (pollution degree: 3)
conforms to EN/IEC 60947-1, 600V (pollution degree) conforms to UL 508
(UIMP) Impulse withstand voltage 6KV according to EN/IEC 60947-1
Directions information: 2 directions
Contact type: NO-NO
Short circuit protection: 10A gG (gl) neozed fuse cartridge in accordance with SR EN 60947-5-1
Terminal connections: Captive screw terminals-2 x 1.5mm with or without terminal pins
Electrical durability: 1000000 Cic at 230V AC -15,
Operating rate 3600 cic/h
Load factor: 0.5 according to EN/IC 60947
Overvoltage category: Class I
Mechanical durability: 1000000 cycles
Height: 122 mm
Depth: 40 mm
Compatibility code: XD2
Package Contents:
1 x Controller Lever 2 Positions NO-NO Return
