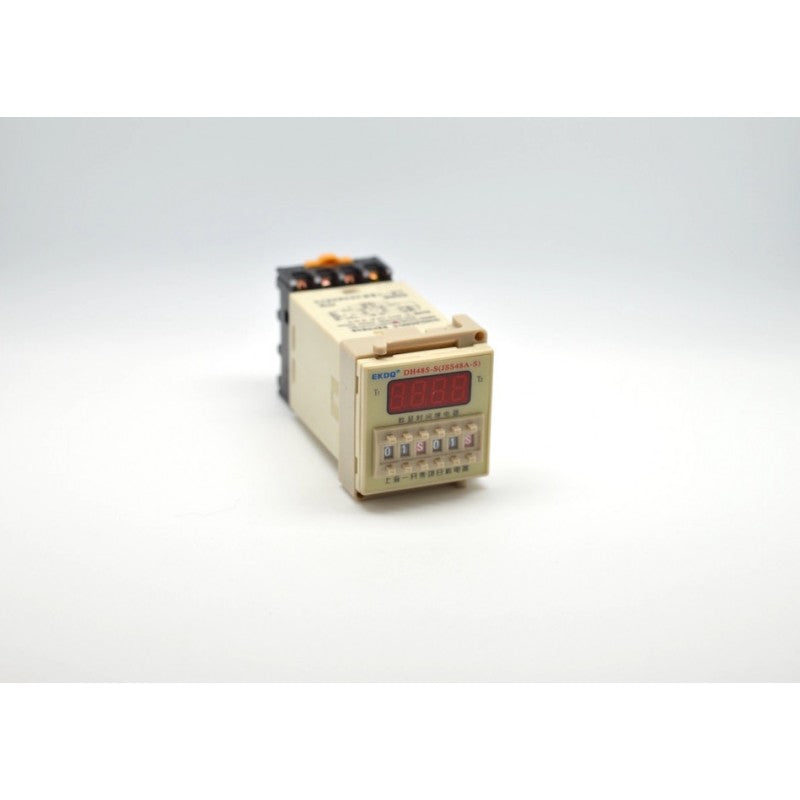

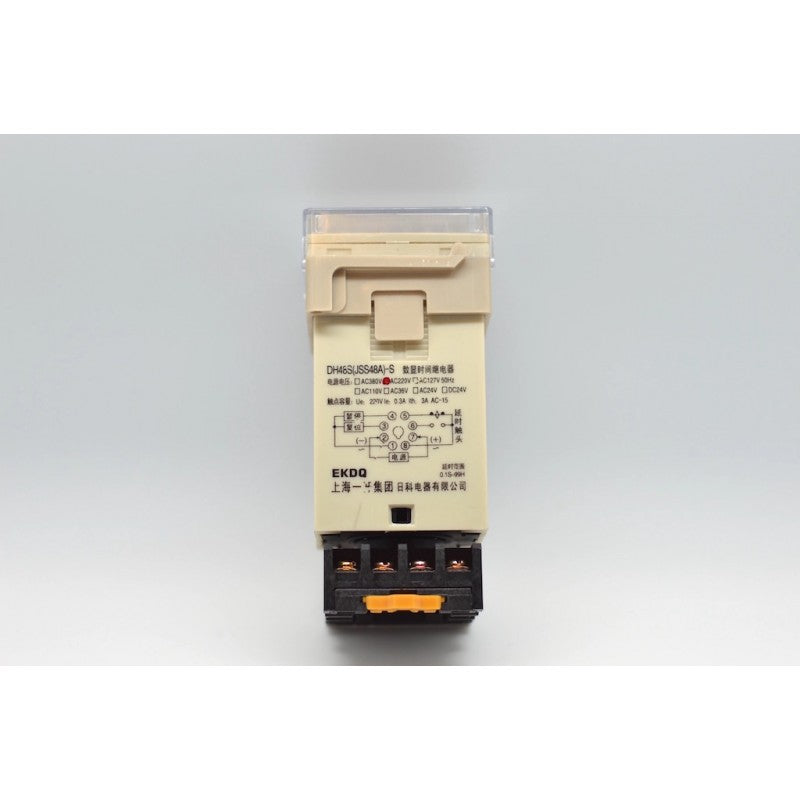

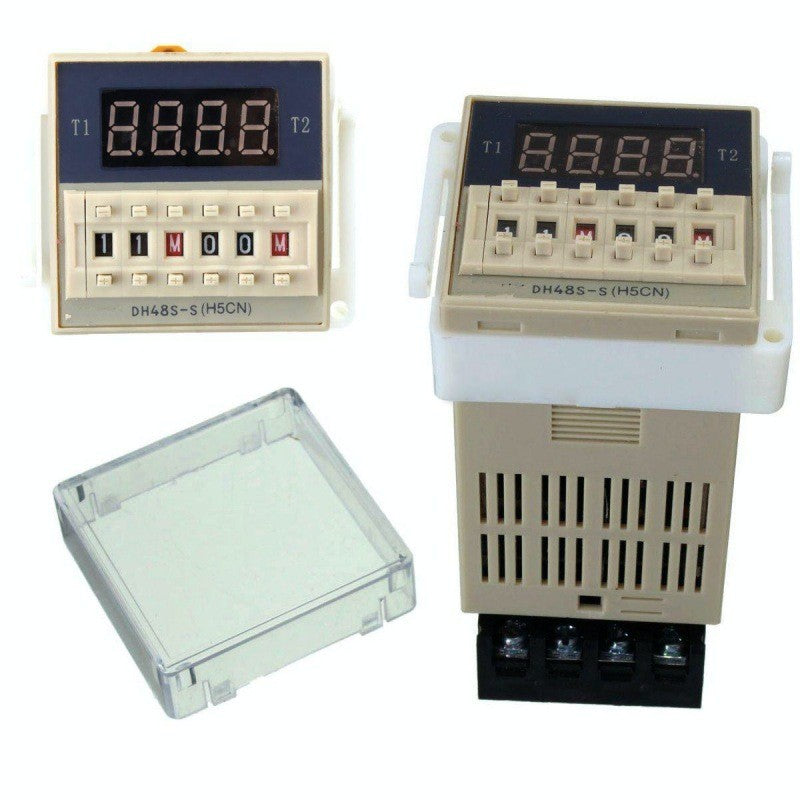

Digital Timer Controller, Time Relay DH48S-S

Digital Timer Controller, Digital Time Relay, Dual Controller DH48S-S

This Time Relay is designed for a wide range of applications including billboards, traffic lights, street lights, mechanical machinery, electrical and control panels, as well as mining and agricultural work environments. Its precise and reliable features make it suitable for lighting programming and controlling various electrical systems.

Characteristics:

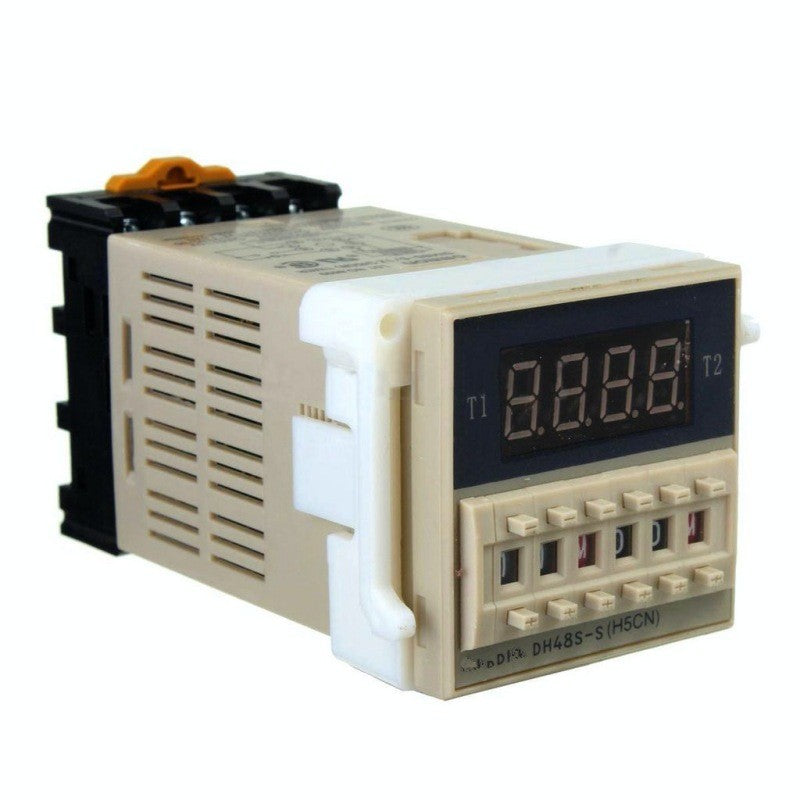

• LED display: The LED display allows a clear visibility of the programmed values, being easy to read both day and night.

• Adjustable Time Interval: The adjustable time interval is between 0.1 seconds and 99 hours, providing flexibility in scheduling commands.

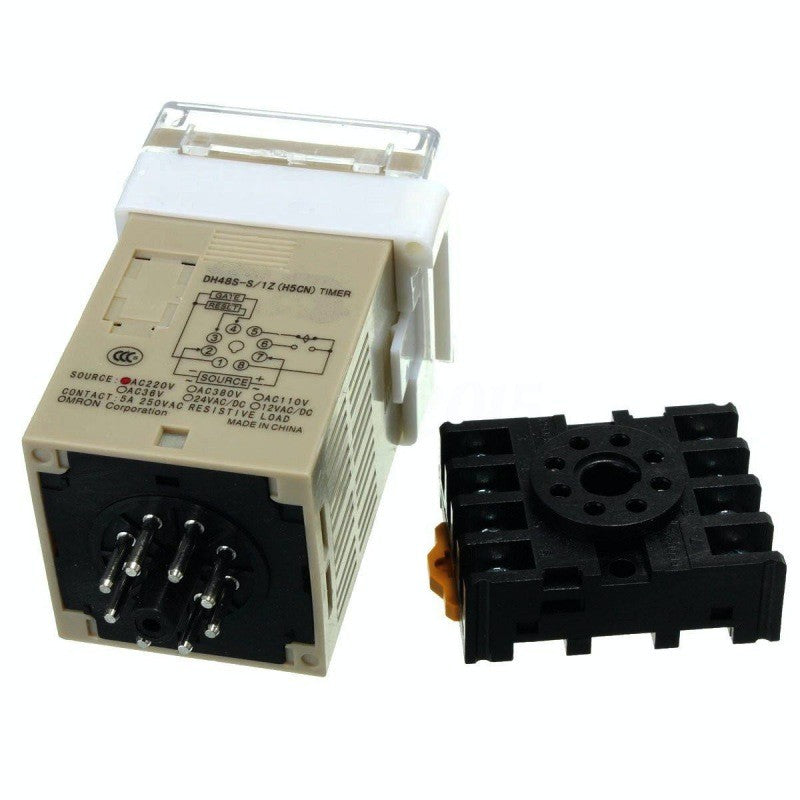

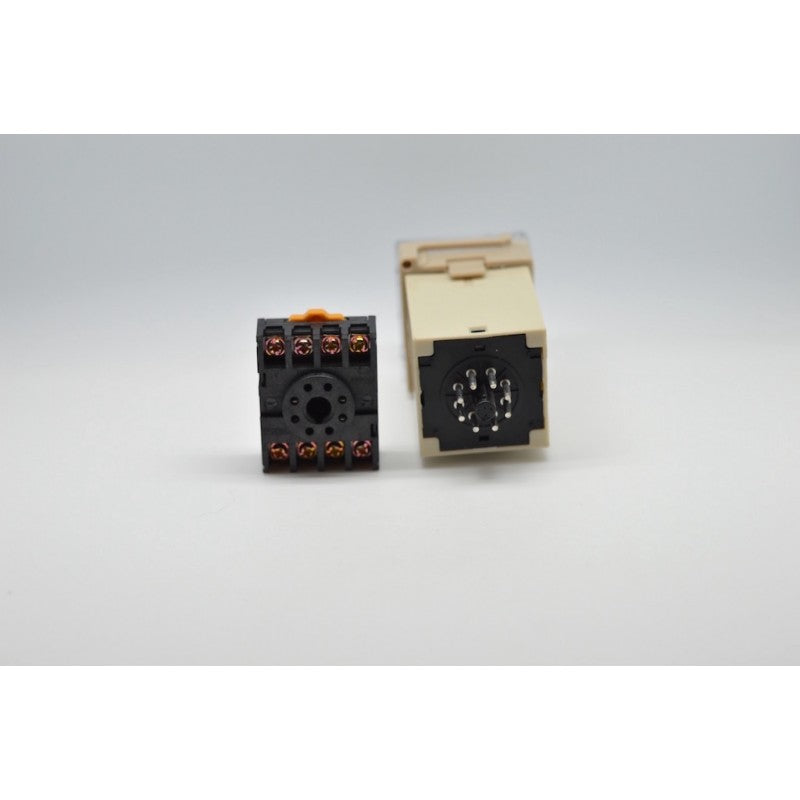

• 8 Pin Socket: Features an 8 pin socket for proper connection and power.

• Standards Conformity: It conforms to GB1408.5-2001 standard, ensuring that the whole system works safely and efficiently.

• Extended Lifetime: The machine has a mechanical life of 10 million operations and an electrical life of 50 million operations, making it robust and durable.

Technical Details:

• Voltage Rate: 85-110%

• Supply Voltage: 220V

• Accuracy to Precision: ≥ 0.3% +- -0.05S

• Capacitate de Contact: AC 220V 5A / DC 30V-5A

• Mechanical Lifetime: 10,000,000 operations

• Electrical Lifetime: 50,000,000 operations

• Ambient Working Temperature: -10˚C to +50˚C

• Power Consumption: 5W

Adjustment Parameters:

• H - 1M-99H99M

• M - 1S99M99S

• S - 0.01S-99.99S

• M / S - 1S-99M99S

• H / M - 1M-99H99M

• 0.01S - 0.01S-99.99S

• 0.1S - 0.1S-999.9S

• S - 1S-9999S

• M - 1M-9999M

• 10S - 10S-99990S

• 0.1M - 0.1M-999.9M

• 0.1H - 1M-999.9H

• H - 1H-9999H

Careful:

1. The appliance and its accessories must be installed in accordance with the purpose for which they were designed.

2. Installation and commissioning should be carried out by an authorized person.

3. In case of operational problems, it is recommended to contact a competent person to avoid loss of warranty.

Package Contents:

• 1 x Digital Timer Controller, Digital Time Relay, Dual Controller DH48S-S
