Controller DMX512 Addressable Pixel Led SP201E

Controller DMX512 Addressable Pixel Led SP201E

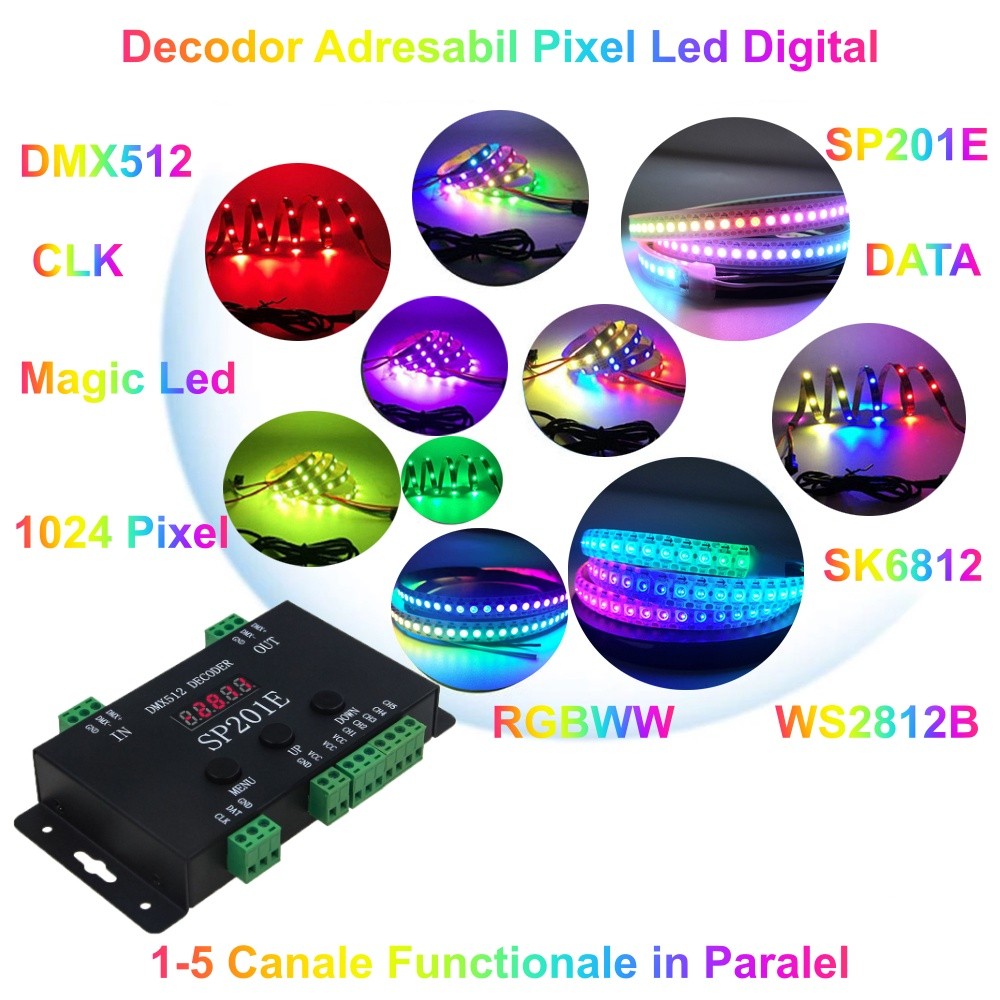

The SP201E DMX512 Decoder is designed to control various types of IC LEDs, such as WS2811, WS2812B, WS2801, SK6812, RGBW, WS2813, LPD6803, LPD8806, APA102, TM1913, UCSSM19503, DMX19503 and others. It allows control of up to 1024 pixels and can work with SPI signal when DMX signal is not used.

Characteristics:

• DMX512 Compatibility: It can work as DMX decoder with DMX512 compatible interface, automatically identifying DMX signal at input.

• Versatile Control: Can control a variety of LEDs with integrated circuits, providing the ability to use different effects and colors.

• Dynamic Variations and Colors: Features up to 99 dynamic variations and built-in colors such as flash, glow, fade, smooth, track, stream, spread, strobe etc.

• Adjustable Speed: Effects speed and color intensity can be adjusted according to preferences.

• Simple Connection: Connection is simple, with three wires for VCC (red), GND (black), and DAT (blue).

• Additional Protection: Features reverse connection and overload protection.

• External Control and Arduino Compatibility: Working mode with external controller, being compatible with the Arduino platform.

Technical Details:

• Working Voltage: 5V - 24V DC

• Putere: 0,3W/Pixel

• Waterproof Class: NO

• How it works: External controller, compatible with Arduino

• Connection: VCC (Red), GND (Black), DAT (Blue)

• Protections: Against reverse connection and overload

Package Contents:

• 1 x Controller digital DMX512/SP201E
• 1 x English Instructions
