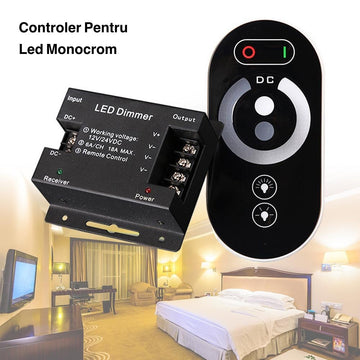

Dimmer Touch Led Monocolor 12V-24V with Remote

Dimmer Touch LED Monocolor 12V-24V with Remote Control

The touch controller for adjusting the monochromatic LED light is a state-of-the-art product manufactured with newly developed technology. It can control light intensity wirelessly using wireless RF technology.

Characteristics:

• Controller with touch function for adjusting monochromatic LED light.

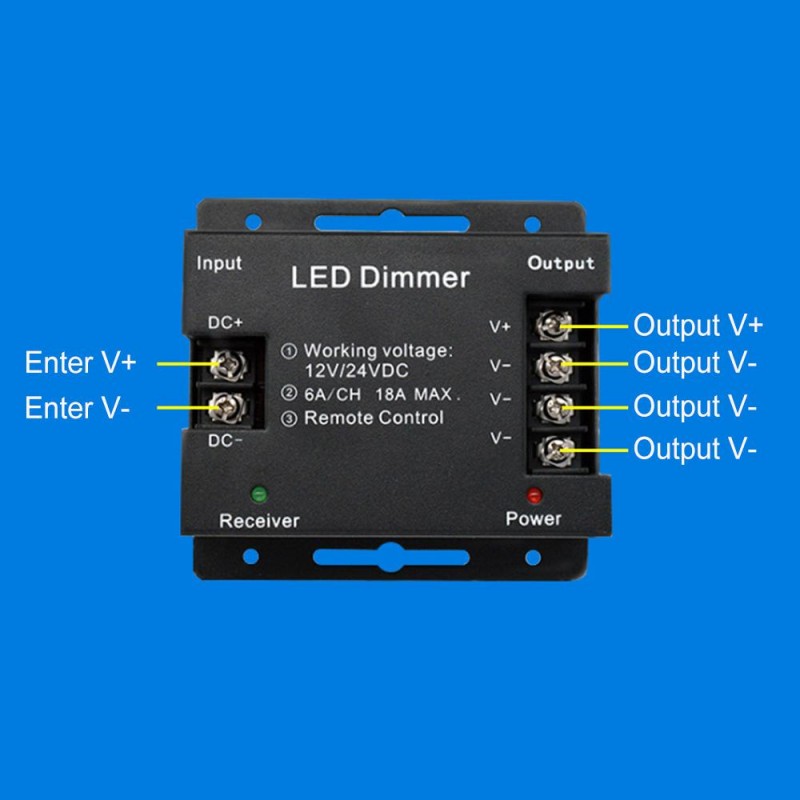

• 3 parallel output channels for controlling 3 separate lines simultaneously.
• Integrated RF control technology for stability at distances up to 20m.
• Low power consumption and long life.

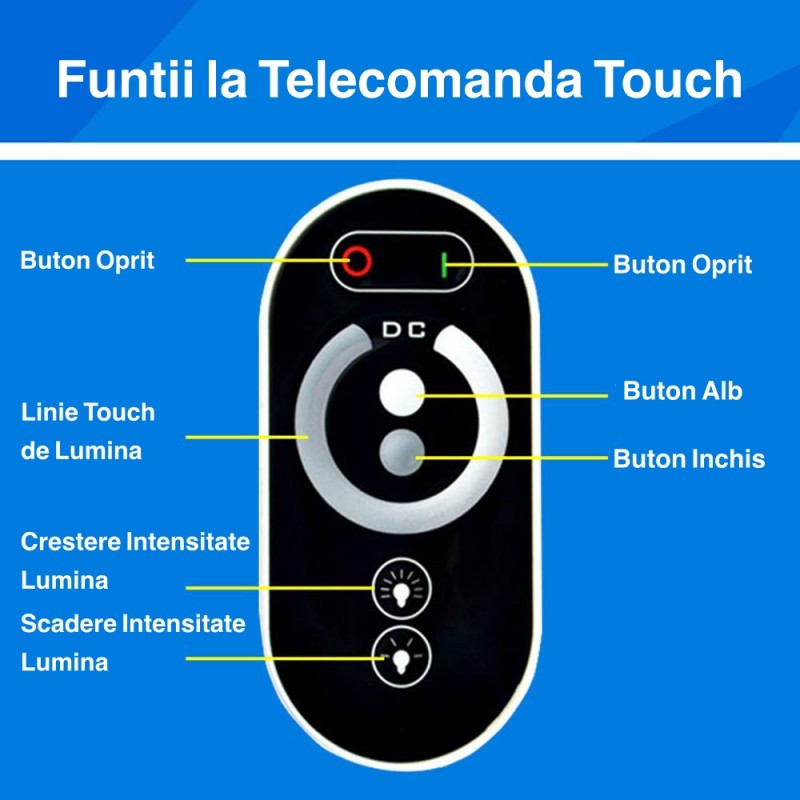

• Remote control with high-precision captive control chip.
• Short circuit indication by flashing green light.
• High touch sensitivity and stable performance.

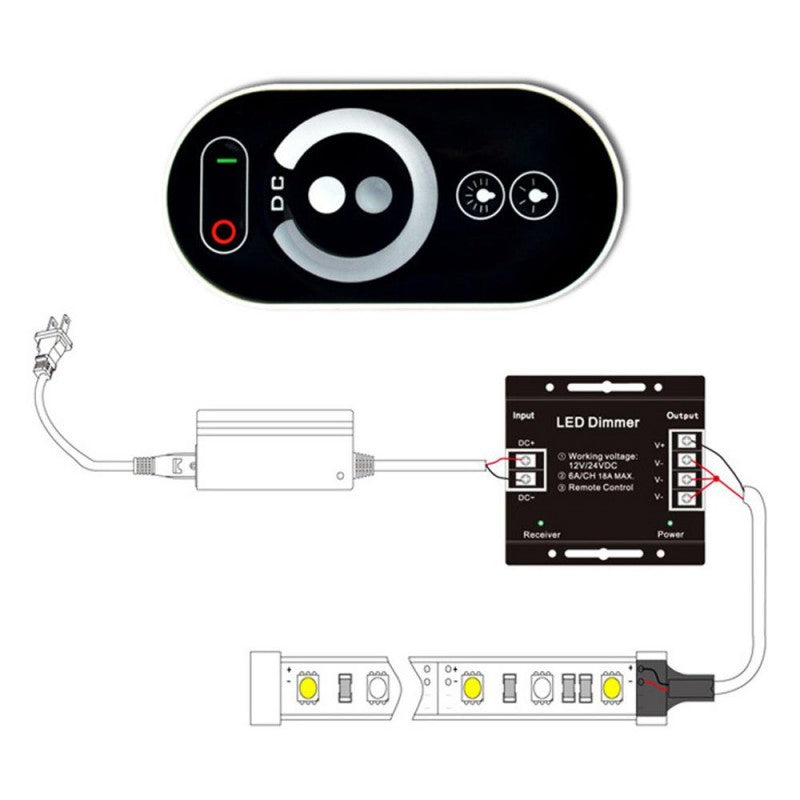

• Suitable for monochromatic LED sources such as LED strips, LED bars, LED pills or modules, sconces, chandeliers, lamps, floor lamps, etc.

Technical Details:

• Supply voltage: 12V/24V DC.
• Static energy consumption: < 1W.
• Output current: 6A X 3CH = 18A MAX (6A for each channel).
• Ieșire on canal: 6A/CH.
• Output power: 12V <216W / 24V < 432W.
• Working temperature: -20˚C + 60˚C.
• Remote Control: Powered by 3 AAA, R3 batteries (Batteries are NOT included in the package).
• Remote control static power consumption: 0.09mW.
• Operating distance: ≥ 20m.
• Remote control working temperature: -30˚C +60˚C.

Careful!

Installation by a licensed electrician or electronics technician is recommended.

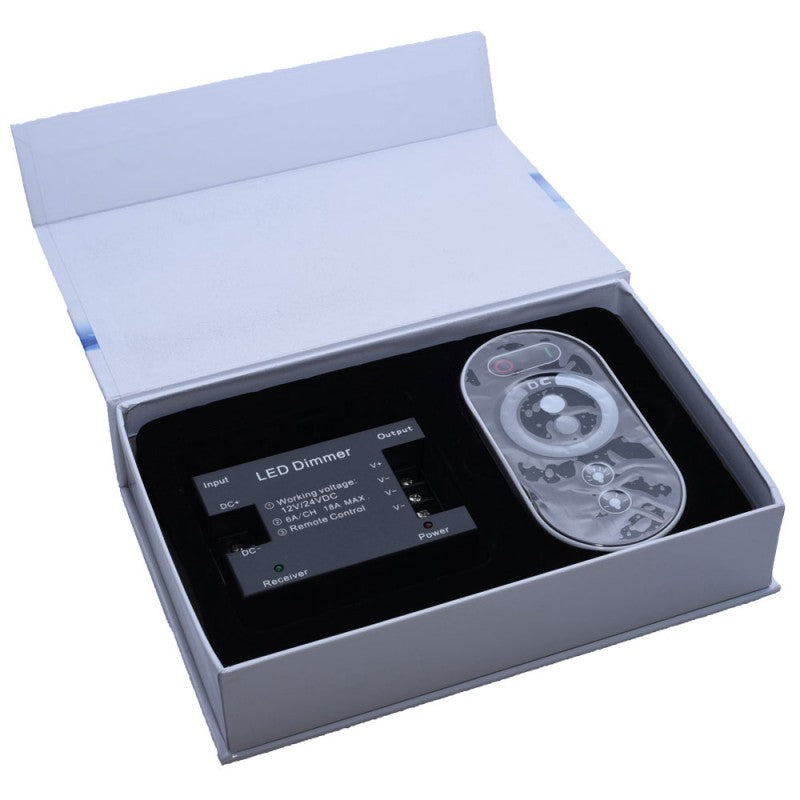

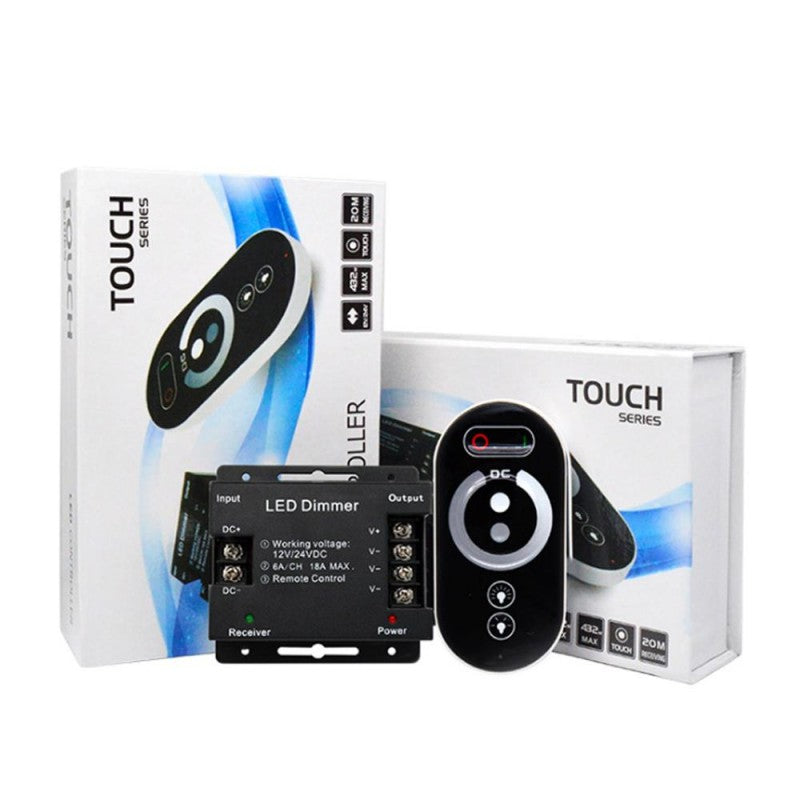

Package Contents:

• 1 x Dimmer LED.
• 1 x Touch remote control.
• 1 x User Manual (English).
