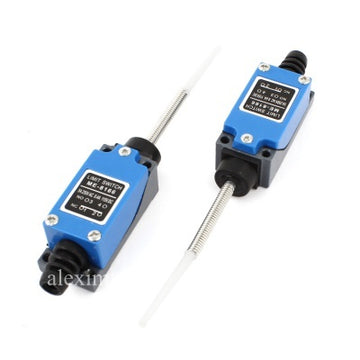

Limit switch ME-8166
-
Estimated Delivery:Apr 26 - Apr 30
-
Free Delivery: Any order over 300 lei
Limit switch ME-8166
Limit switch ME-8166
Limit switch with movable metal rod on adjustable arm, used in multiple applications and machines.
This on-off, off-on action switch can be attached to garage doors,
entrance gates, entrance doors, automatic machines, milling machines, grinders, lathes, line installations,
chairlift facilities, cable car, etc.
Technical details:
Model Number: ME-8166
Actuator Action: Momentary
Actuator Type: Wobble Stick, Auto Reset
Tip de contact: 1NC + 1NO (SPDT)
Rated voltage and current:
AC 250V, 5A
DC 115V, 0,4A
Coil Size: 6 x 45mm / 1.8" x 3.6" (Dia. * L)
Stick Total Length: 85mm / 3.3"
Body Size: 88 x 28 x 26mm / 3.5" x 1.1" x 1.0" (L * W * H)
Mounting Hole Diameter: 4.4mm / 0.17"
Mounting hole distance: 56 x 21mm / 2.2" x 0.83" (L * W)
Resin Material: Plastic & Metal
Package Contents:
1 x Limit Switch ME-8166
