Multimeter Capacitance CM7115A
-
Estimated Delivery:Apr 26 - Apr 30
-
Free Delivery: Any order over 300 lei
Multimeter Capacitance CM7115A
Multimeter Capacitance CM7115A
Multimeter that helps to measure electricity. Used in the industrial or domestic environment.
Technical details:
Measurement method: Dual slope A/D conversion system
Display method: LCD display
Capacitance: 200pF / 2nF / 20nF / 200nF / 2μ / 20μF / 200μF / 2000μF / 20000μF
Accuracy (manufacturing proof of accuracy within one year, full-scale type)
200pF is ± (0.5% + 6);
2nF / 20nF / 200nF / 2μ / 20μF / 200μF este ± (0,5% + 1)
2000μF above is ± (1.0% + 1)
20mF rated ± (2.0% + 1)
Test frequency: 800 Hz, 80 Hz, 8 Hz
Maximum display: 1999 counts (3 1/2 digits) with automatic polarity indication
Measurement rate: Updates 2-3 sec
Surface indication: the "1" symbol is only in the displayed display
Operating temperature: 0 ° C ~ 40 ° C, 0 <80% R.H.
Storage temperature: -10 ° C ~ + 50 ° C, 0 <70% R.H.
Power supply: 9V battery IEC 6F22, NEDA 1604, JIS 006P (not included in the package)
Static electricity: about 4mA
Clamp size: 25 mm for open jaw; 35 mm for the inner diameter
Product size: 12.2 * 6.2 * 3.5 cm
Product net weight: 135g

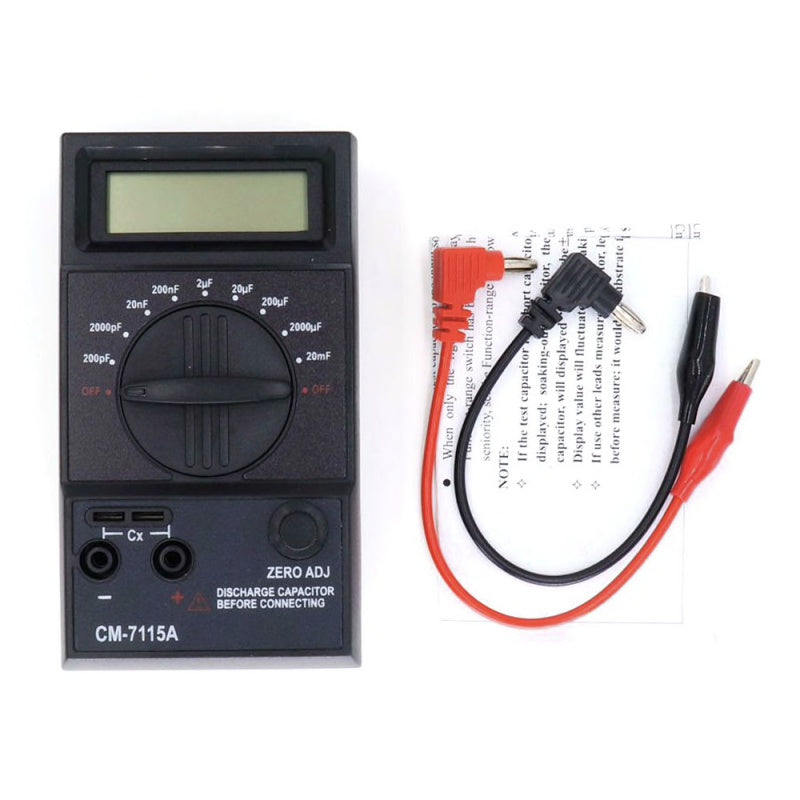

Accessories: user manual, test leads (pair)
Electrical specifications (23 °C ± 5 °C, below 80% R.H.)
Accuracy is given as ± (% of maximum reading + number of least significant digits)
Package Contents:
1 x Multimeter Capacitance CM7115A
