Push Buton 30mm/24V Led Albastru
-
Estimated Delivery:Apr 26 - Apr 30
-
Free Delivery: Any order over 300 lei
Push Buton 30mm/24V Led Albastru
Push Buton 30mm/24V Led Albastru

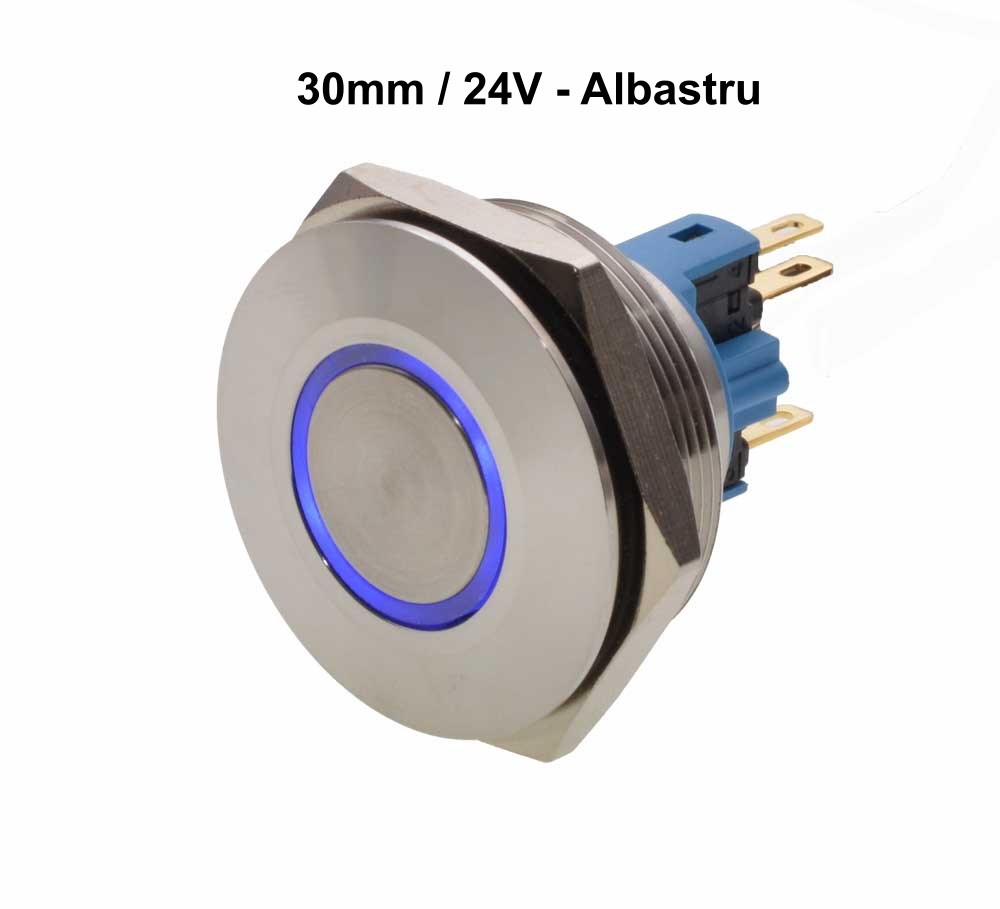

Push metal button with a diameter of 30mm and blue light, switch that can be used for
control panels of car washes, elevators and other machines compatible with this type of button
by pressing.
Anti-vandal and waterproof metal button powered by 24V.
This push switch has 6 power connection pins.
Push button with mechanical return action that can be used for:
automatic laundromats and washing pumps.
The button has a flat face and the ring of light that surrounds the push button,
having a superior quality due to the finish.
Technical details:
Removable nut and rubber gasket ring.
Silver alloy contacts
Function: Momentary
Light Color: Blue
Lamp life: ≥ 50000h
Connection terminals: 6 Pins 1NO 1NC
Protection level: IP67 / IK09
Working pressure: 500gf
Mechanical life span: 500,000 cycles
Dielectric lifetime: 200,000 cycles
Operating temperature: 20 - 85˚C
Torque size: 5-14Nm
Duty cycle: 2.0mm
Contact resistance: 50mOhm Max
Insulation resistance: 1000mOhm Max
Product made under quality standards: CE, Rohs
Package Contents:
1 x Push Buton 30mm/24V Led Albastru
Packaged: 20pcs/box
