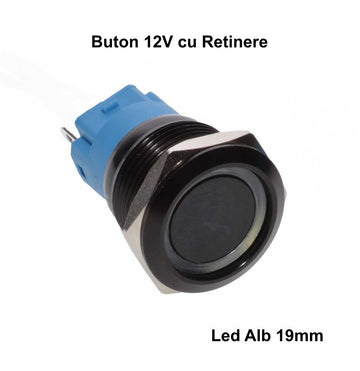

Push Button Black 19mm/Retainer with White LED
Push Button Black 19mm/Retainer with White LED
Push button with retention black metal with a diameter of 19mm and green light,
Button that can be used on control panels, machines, cars, electrical devices,
automatic washing machines, pumps, toys and other machines compatible with this type of button via
pressing.
Anti-vandal and waterproof metal button that is powered at 12V voltage.
This push switch has 5 power connection pins, the diameter required for mounting is 19mm.
The button is made of aluminum and electrostatically painted in black and has a flat face with a light ring
led that surrounds the push button, the edge is chamfered for a quality finish.
Removable nut for fixing the button in the housing.
Silver alloy contacts
Technical details:
Supply voltage: 12V
Supply current: 5A
Function: Retention
Light Color: White
Lamp life: ≥ 50000h
Connection terminals: 5 Pins with association: 1NO, 1NC, LED+, LED-, COM
Protection level: IP67 / IK09
Working pressure: 500gf
Mechanical life span: 500,000 cycles
Dielectric lifetime: 200,000 cycles
Operating temperature: 20 - 85˚C
Torque size: 5-14Nm
Duty cycle: 2.0mm
Contact resistance: 50mOhm Max
Insulation resistance: 1000mOhm Max
Product made under quality standards: CE, Rohs
Package Contents:
1 x Push Button Black 19mm/Retainer with Green LED
Packaged: 20pcs/box
