Mini Pir Sensor 12-24V with Wires, MK-0003

Mini PIR sensor 12-24V with Wires, MK-0003

Mini PIR sensor with infrared and motion detection at night, with a range of 2.5-5m.

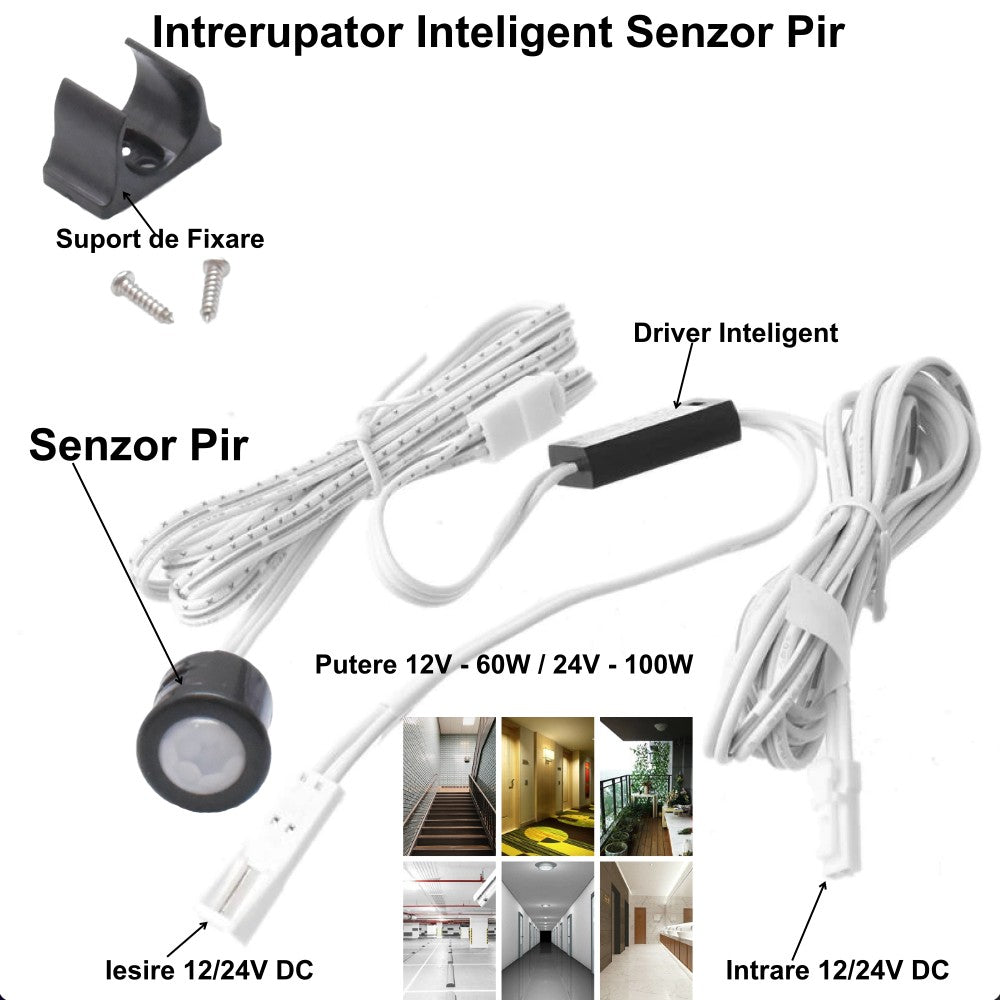

This plastic mini sensor has 4 connection wires, two for power (long ones) and two for output (short ones), with a detection angle up to 110˚-120˚.

The sensor is powered at a voltage between 12V - 24V DC. It can be mounted on various lighting fixtures such as: LED strip, LEDs, lamp, chandelier, lamp, wall lamp, projector, light bulb, etc.

Fields of application of this sensor: kitchen cabinets, bathroom cabinets, dressing room, merchandise shelves, corridors, bathrooms, basements, warehouses, garages, cars, light or advertising boxes, etc.

With the help of the sensors installed in the lighting systems, it is possible to achieve the greatest economy of electric current and thus benefit the material part (budget) as well as help the environment.

The PIR sensor works as an automatic switch in a lightless environment. When someone enters the detection area, the probe will automatically turn on the light when sensing the human body temperature. It will automatically turn off the light when it no longer senses the body temperature.

Photosensitive cell with infrared temperature detection.

Sensor with plug-in cables for power and output connection.

Technical details:

• Supply voltage: 12V-24V DC
• Charging power: 3-18W
• Ignition delay: 15 seconds
• Curent: 5A
• Voltage: 12V-60W / 24V-100W
• Detection angle: 110˚-120˚
• Detection distance: 2.5-5m
• Size: 14 x 14mm

NOTE!

The supply wires are longer, the output wires are shorter.

Package Contents:

• 1 X Mini PIR Sensor 12-24V with Wires, MK-0003
