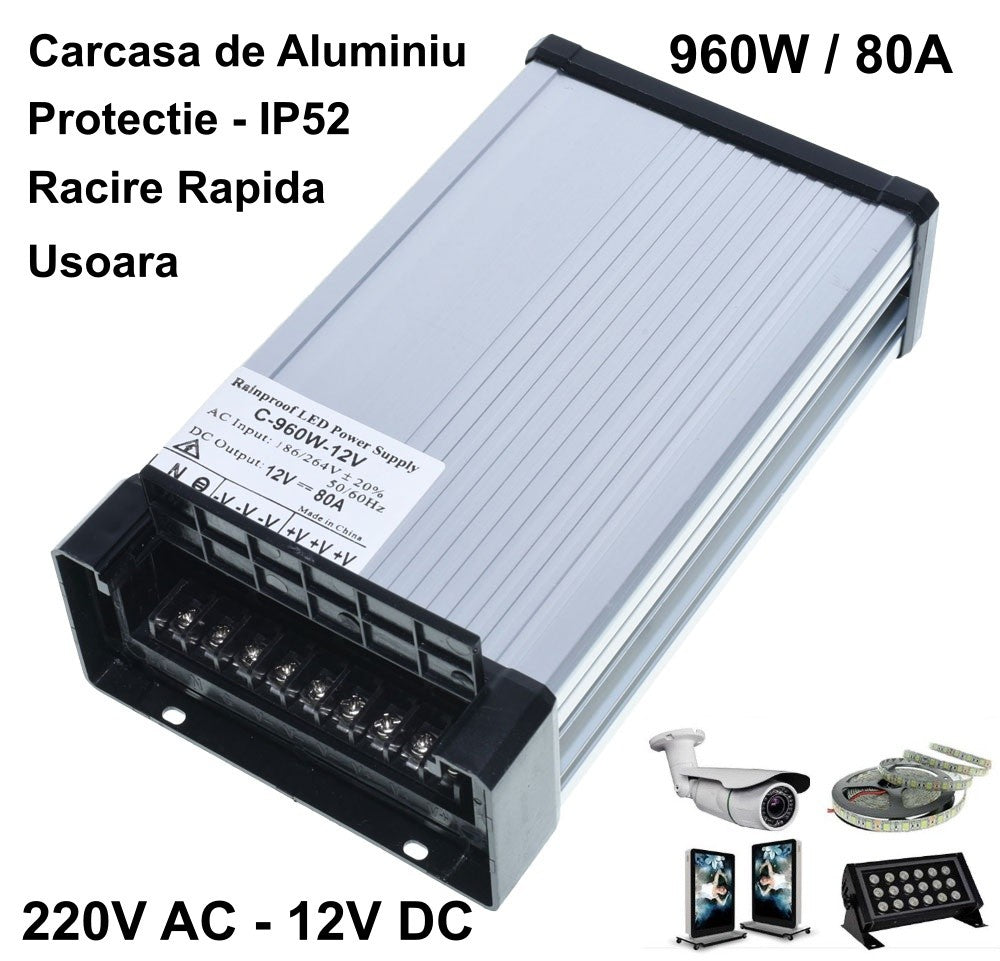

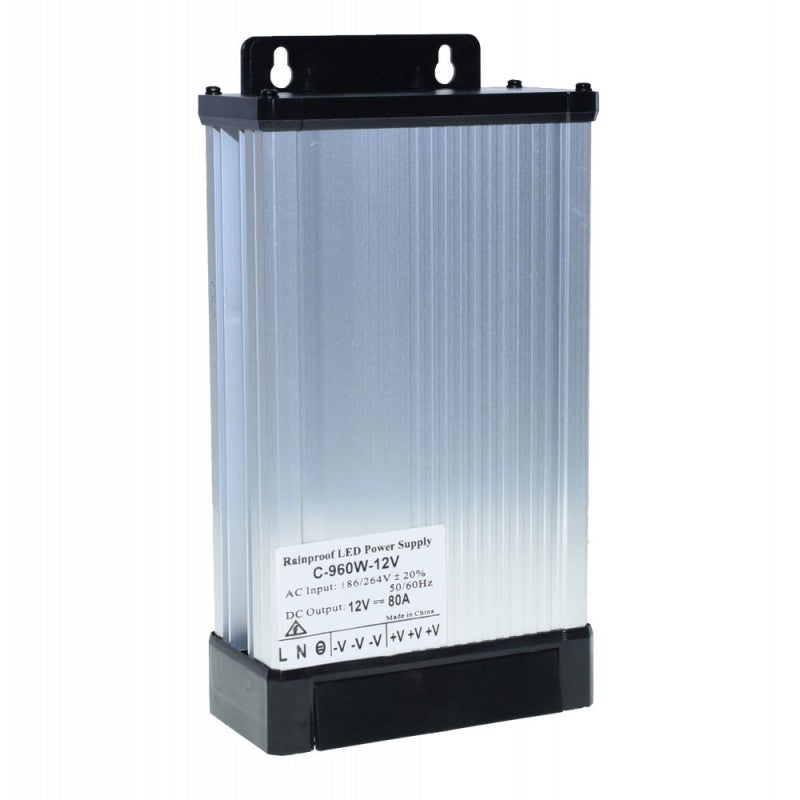

Outdoor Power Supply 12V-960W / 80A

Outdoor Power Supply 12V-960W/80A

Voltage source with aluminum housing and 186V-264V AC voltage supply.

This source outputs a stabilized voltage of 12V and a power of 960W/80A.

With this model of the source it is possible to power: led strip on the roll or on the bar,

spot lights, surveillance cameras, protection and security systems, sensors

of presence, light sources, light fixtures, motors, advertising panels, etc.

The source is made of aluminum, which offers very fast cooling.

With protection class IP52, it can be used in environments with low humidity, fog, etc.

It will NOT be introduced into water or the direct action of rain.

Power supply that can be mounted externally with the help of clamps

and thanks to the IP52 moisture protection class.

The power supply has a mobile case to be able to mount the wires in the strips

and then it goes back. The assembly diagram is on the housing.

Technical details:

To connect to the 220V AC voltage, it has an input channel: L / N / I /

For voltage of 12V DC it has 3 output channels: -V -V -V / +V +V +

Supply voltage: 186V-264V AC

Output voltage: 12V DC

Output current: 80A

Power: 960W

Package Contents:

1 x External Power Supply 12V-960W/80A
