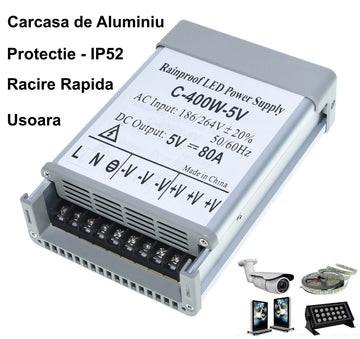

Outdoor Power Supply 5V-400W/80A

Outdoor Power Supply 5V-400W/80A

Voltage source with aluminum housing and 186V-264V AC voltage supply.

This source outputs a stabilized voltage of 5V and a power of 400W/80A.

With this model of the source it is possible to power: led strip on the roll or on the bar,

spot lights, surveillance cameras, protection and security systems, presence sensors,

light sources, light fixtures, motors, advertising panels, etc.

The source is made of aluminum, which offers very fast cooling.

With protection class IP52, it can be used in environments with low humidity, fog, etc.

It will NOT be introduced into water or the direct action of rain.

Power supply that can be mounted outside with the help of the clamps and thanks to the class

IP52 moisture protection.

The power supply has a movable housing to be able to mount the wires in the strips and then pull back.

The assembly diagram is on the housing.

To connect to the 220V AC voltage, it has an input channel: L / N / I /

For voltage of 5V DC it has 3 output channels: -V -V -V / +V +V +

Technical details:

Supply voltage: 186V-264V AC +-20%

Output voltage: 5V DC

Output current: 80A

Power: 400W

Package Contents:

1 x External Power Supply 5V-400W/80A
