Motor Start Capacitor 450V - 20uf / Wired
-
Estimated Delivery:Apr 26 - Apr 30
-
Free Delivery: Any order over 300 lei

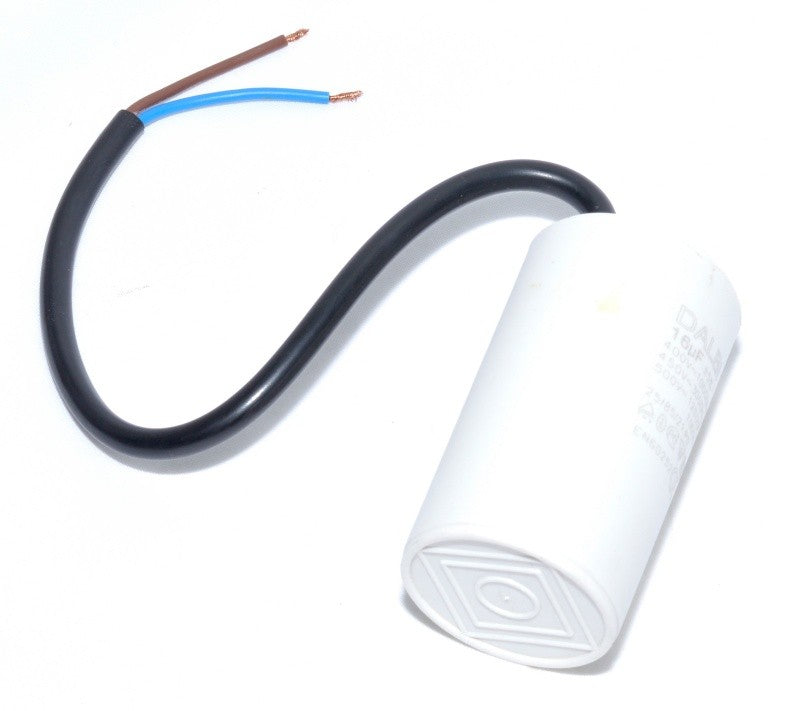

Motor Start Capacitor 450V - 20uf / Wired
Motor Start Capacitor with Wires/20uf - 450V
Encapsulated capacitor with plastic housing and two-wire contact.
This capacitor is useful for starting electric motors:
for air conditioning, cooling fans for refrigerators, refrigeration units, radiator fans,
power engines, chainsaws, compressors, water pumps, car compressors, etc.
These capacitors are used in almost all types of electric motors.
Technical details:
Nominal alternative voltage: 450V AC, 450V AC, 500V AC
400V - 10000h / cl B
450V - 3000h / cl C
500V - 120/20% 1000h / cl D
Nominal frequency: 50 - 60 Hz
Capacity: 20uf
Tolerance: + - 5%
Connection type: Wires
Number of Threads: 2
Shape: Cylinder
Material: plastic
Dissipation factors ≤0.002 (1KHz, 20℃)
Operating temperature: -40 ℃ ~ + 85 ℃ or -40 ℃ ~ + 70 ℃
Flammability class: UL 94 V -2, 750C (RTI)
Self-healing polypropylene dielectric SH
Insulation resistance ≥3000S
Withstand Voltage (Terminal to Terminal) 2 X Rated Voltage
Voltage withstand (Terminal to case) Minimum 2000 V AC for 1 min.
ISO 9001: 2008 quality system
RoHS accredited
Package Contents:
1 x Motor Start Capacitor with Wires/20 uf - 450V
