Push Buton 22mm/24V Led Alb
-
Estimated Delivery:Apr 27 - May 01
-
Free Delivery: Any order over 300 lei
Push Buton 22mm/24V Led Alb
Push Buton 22mm/24V Led Alb

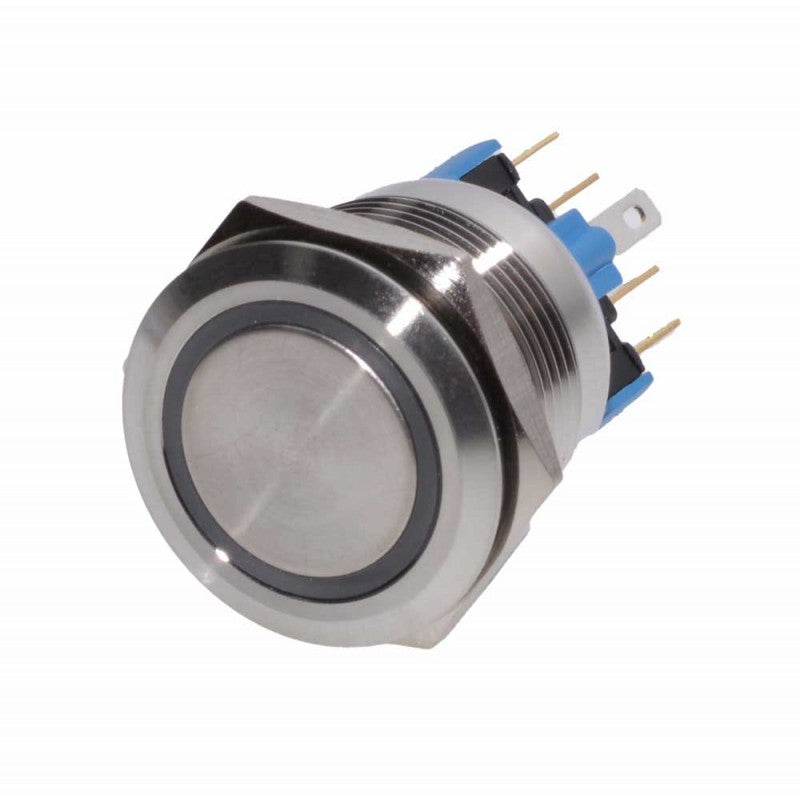

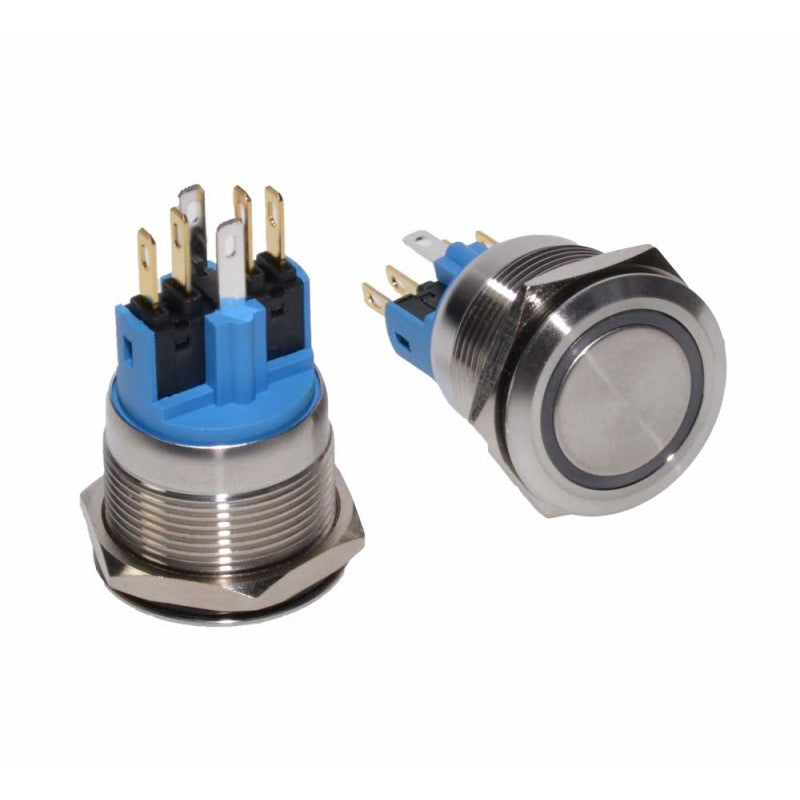

Push metal button with a diameter of 22mm and white light, switch that can be used for
elevator control panels and other machines compatible with this type of push button.
Anti-vandal and waterproof metal button powered by 24V.
This push switch has 6 power connection pins.
Push button with mechanical return action that can be used for:
automatic laundromats and washing pumps.
The button has a flat face and the ring of light that surrounds the push button,
having a superior quality due to the finish.
Removable nut and rubber gasket ring.
Silver alloy contacts
Technical details:

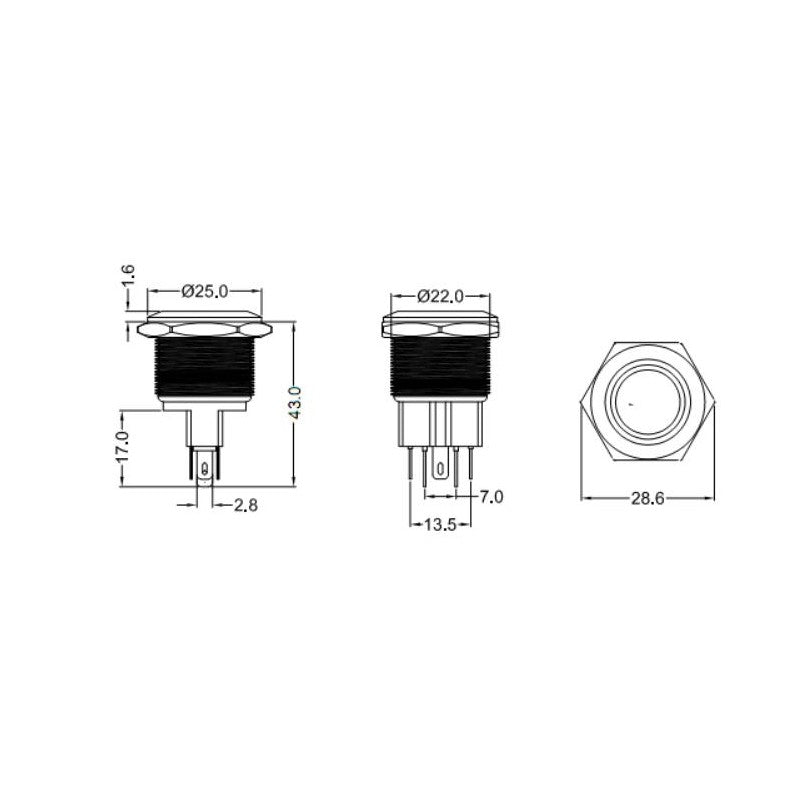

Diameter: 22mm
Function: Momentary
Light Color: White
Lamp life: ≥ 50000h

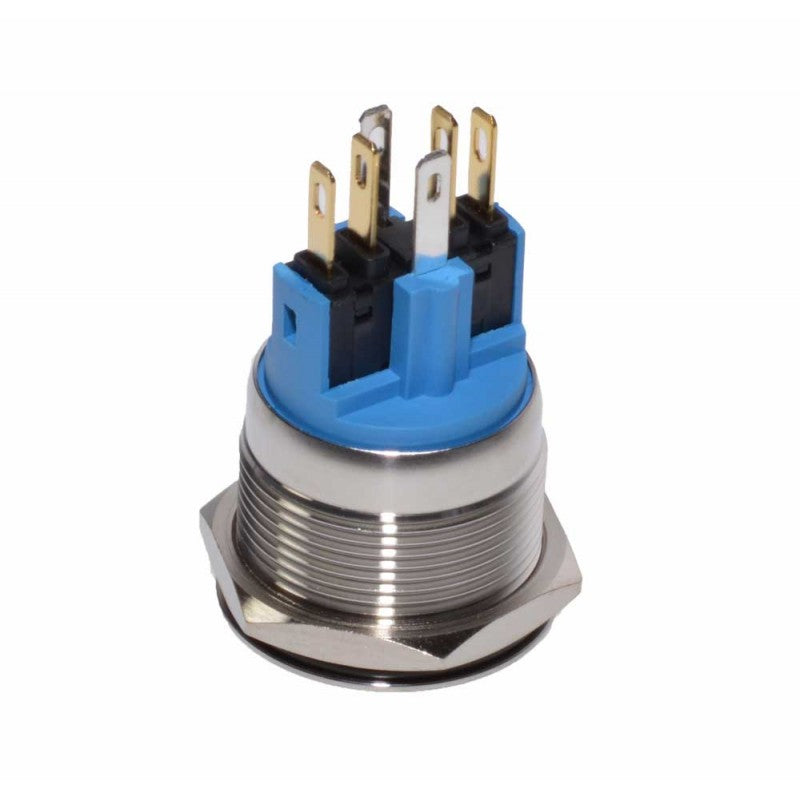

Connection terminals: 6 Pins 1NO 1NC
Protection level: IP67 / IK09
Working pressure: 500gf
Mechanical life span: 500,000 cycles
Dielectric lifetime: 200,000 cycles
Operating temperature: 20 - 85˚C
Torque size: 5-14Nm
Duty cycle: 2.0mm
Contact resistance: 50mOhm Max
Insulation resistance: 1000mOhm Max
Product made under quality standards: CE, Rohs
Package Contents:
1 x Push Buton 22mm/24V Led Alb
Packaged: 20pcs/box
