Push Buton 25mm/24V Led Verde
Push Buton 25mm/24V Led Verde

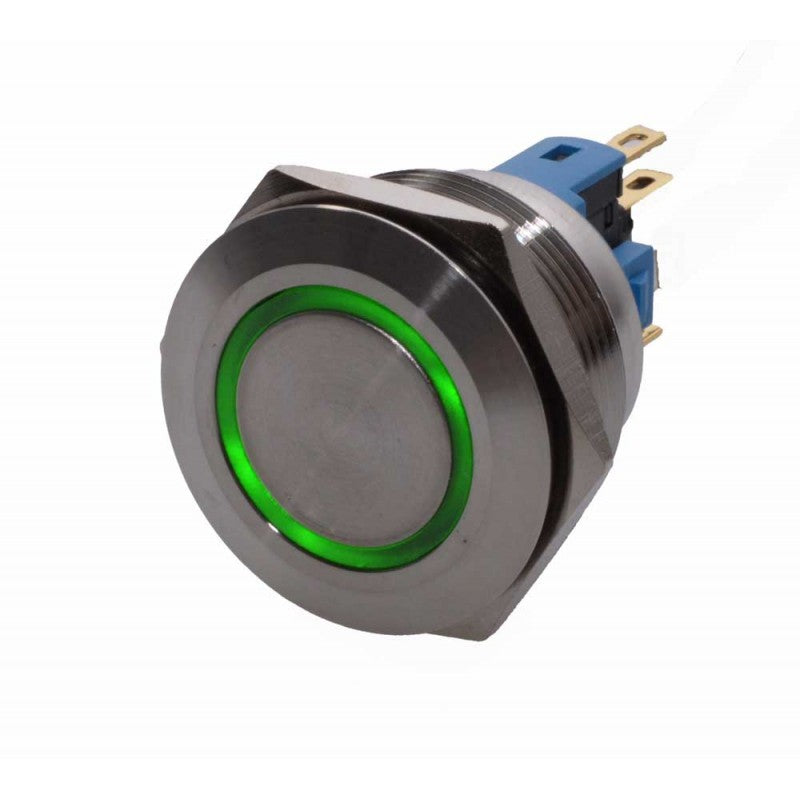

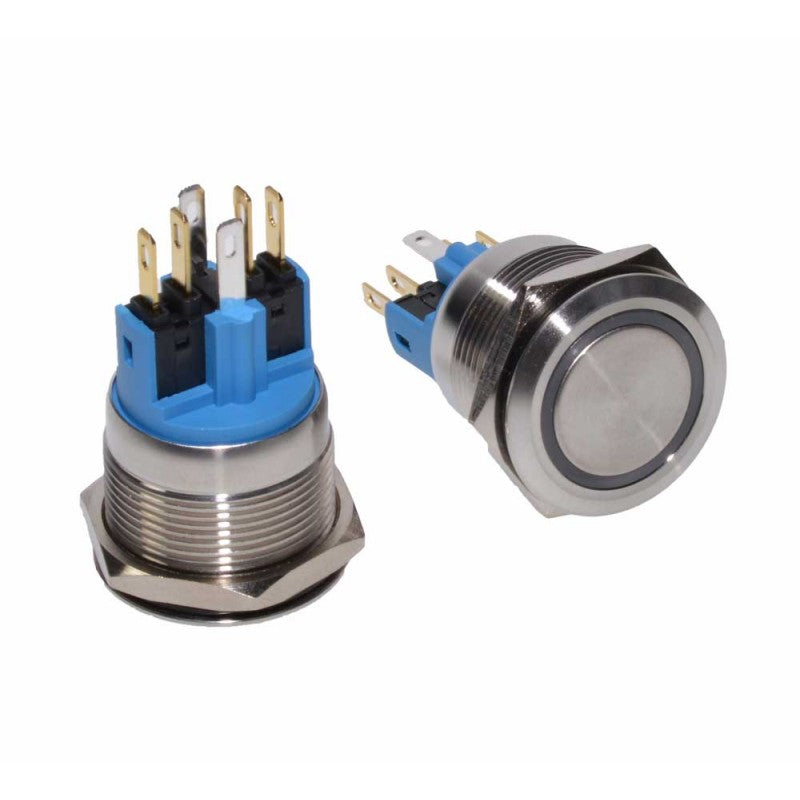

Push metal button with a diameter of 25mm and a green light, a switch that can be used to
elevator control panels and other machines compatible with this type of push button.
Anti-vandal and waterproof metal button powered by 24V.

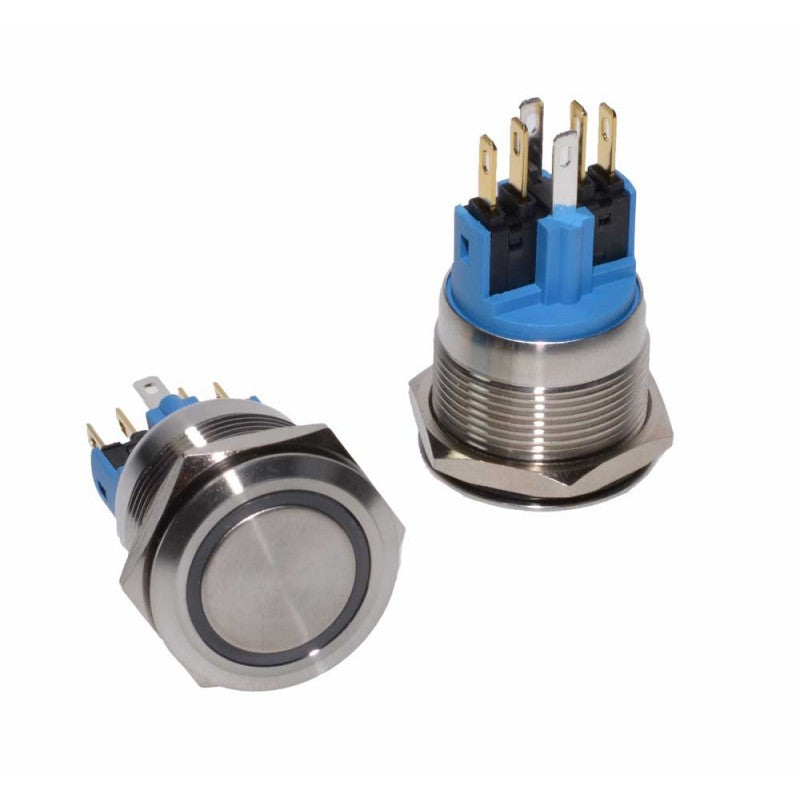

This push switch has 6 power connection pins.
Push button with mechanical return action that can be used for:
automatic laundromats and washing pumps.

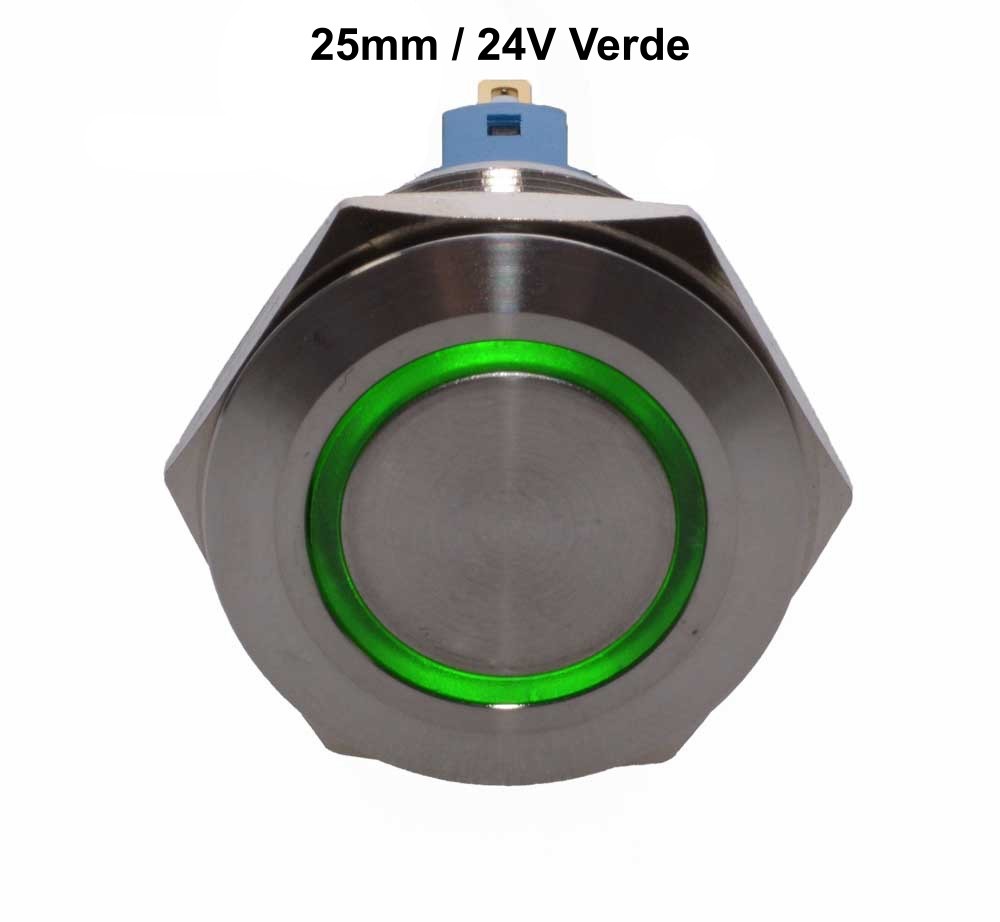

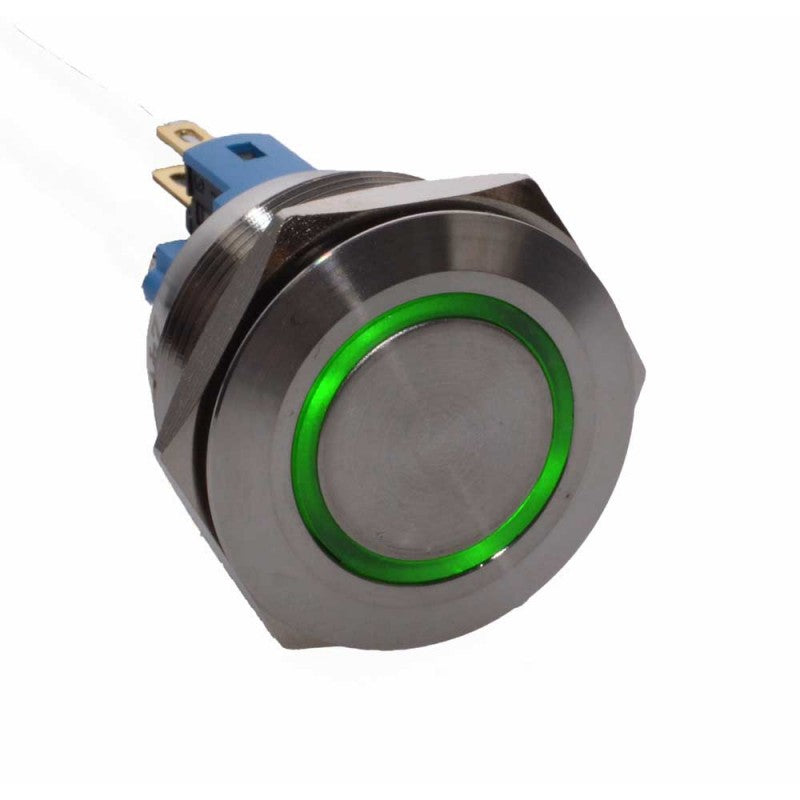

The button has a flat face and the ring of light that surrounds the push button,
having a superior quality due to the finish.
Technical details:
Removable nut and rubber gasket ring.
Silver alloy contacts
Function: Momentary
Light Color: Green
Lamp life: ≥ 50000h

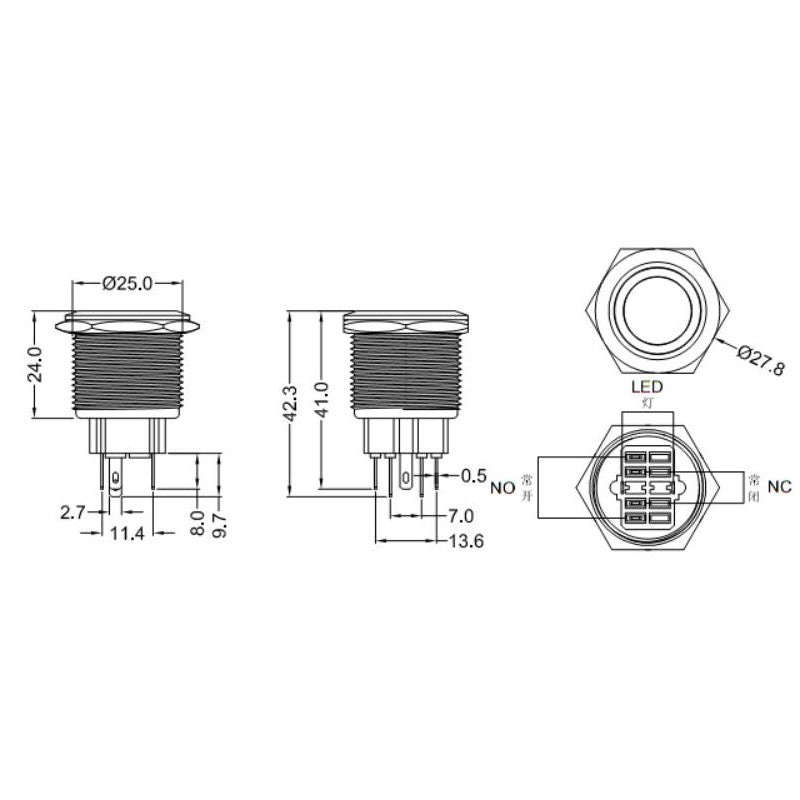

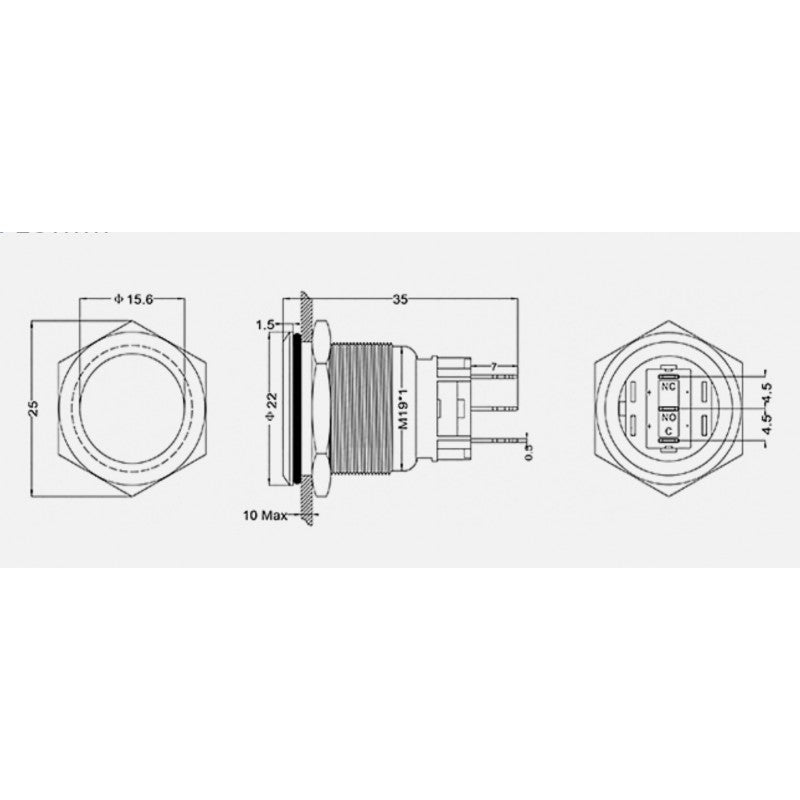

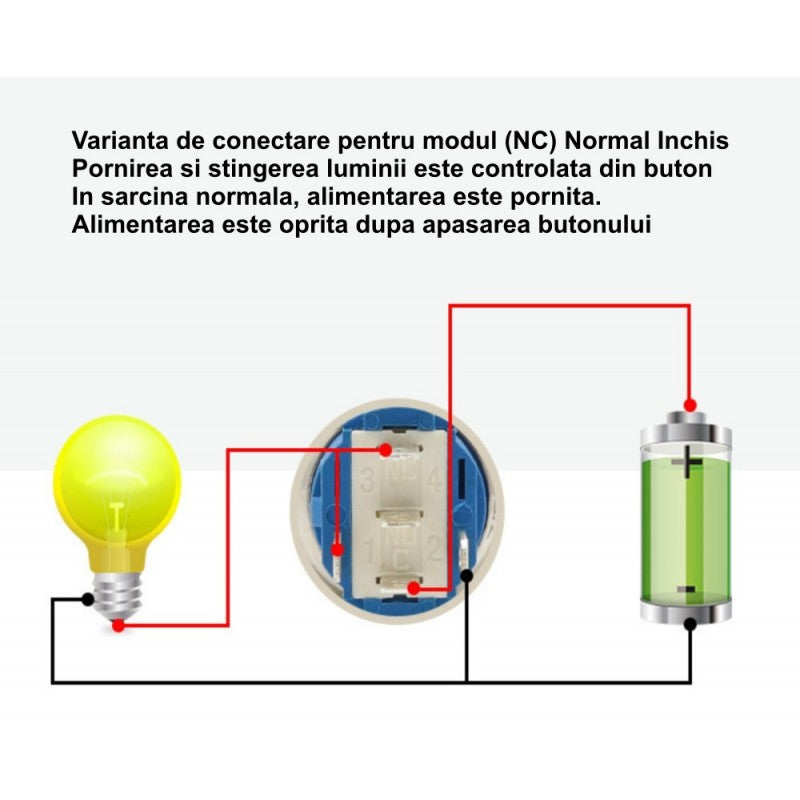

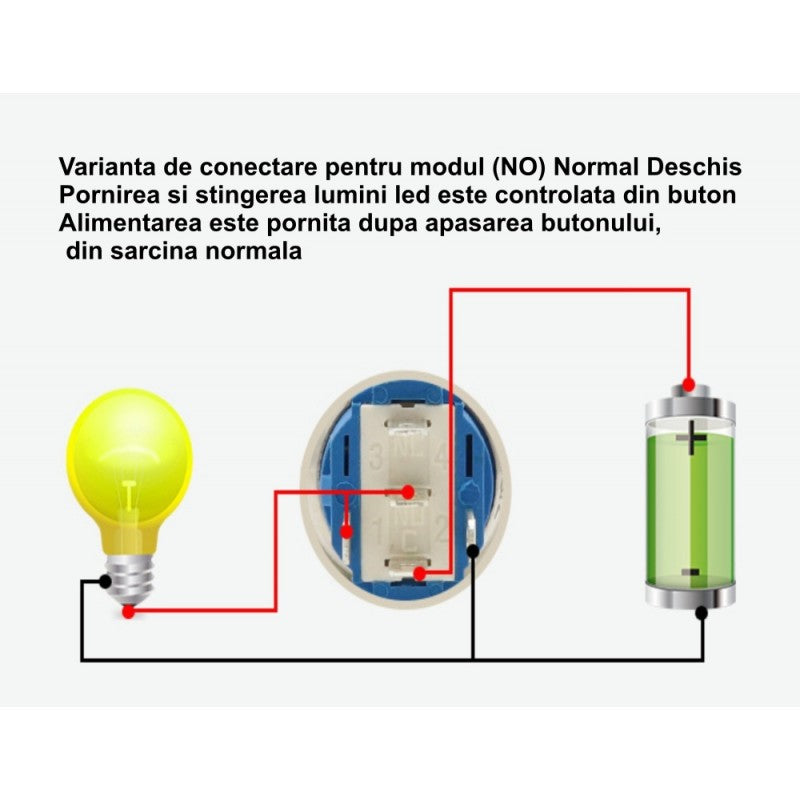

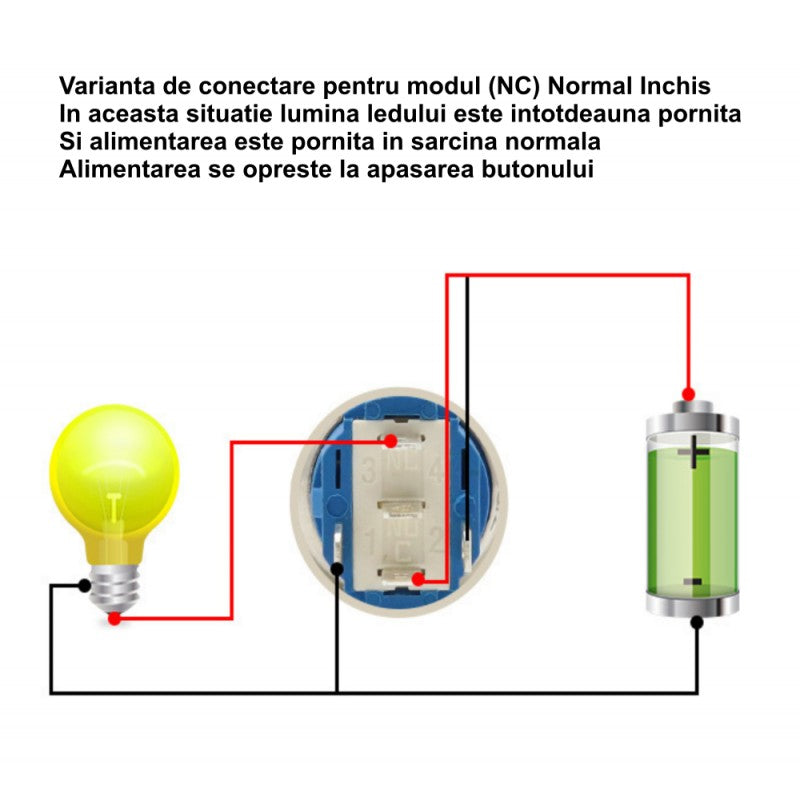

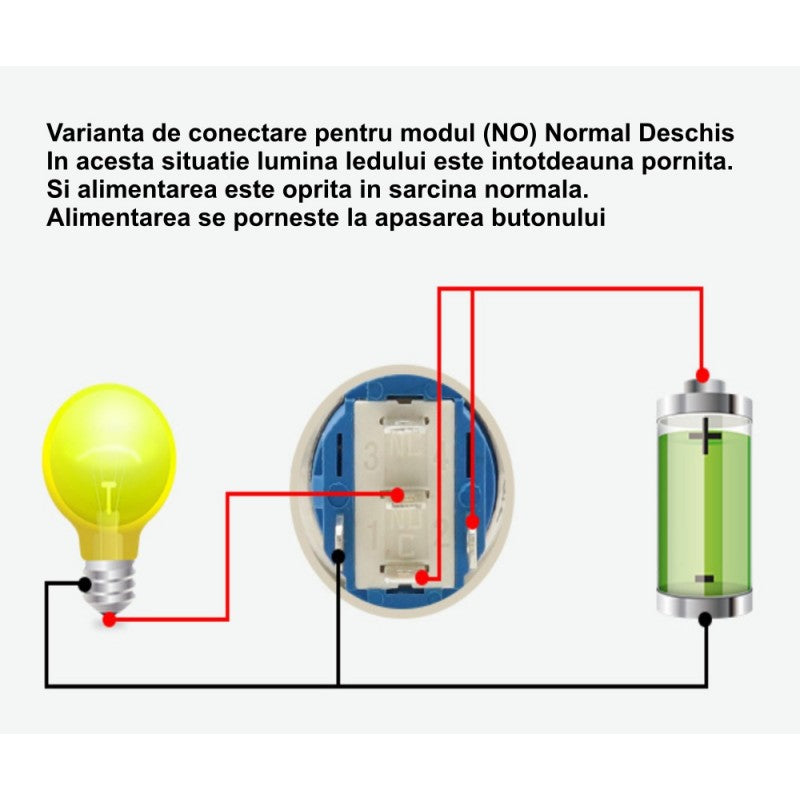

Connection terminals: 6 Pins 1NO 1NC
Protection level: IP67 / IK09
Working pressure: 500gf
Mechanical life span: 500,000 cycles
Dielectric lifetime: 200,000 cycles
Operating temperature: 20 - 85˚C
Torque size: 5-14Nm
Duty cycle: 2.0mm
Contact resistance: 50mOhm Max
Insulation resistance: 1000mOhm Max
Product made under quality standards: CE, Rohs
Package Contents:
1 x Push Buton 25mm/24V Led Verde
Packaged: 20pcs/box
