Push Button Black 19mm/Red LED
Push Button Black 19mm/Red Led

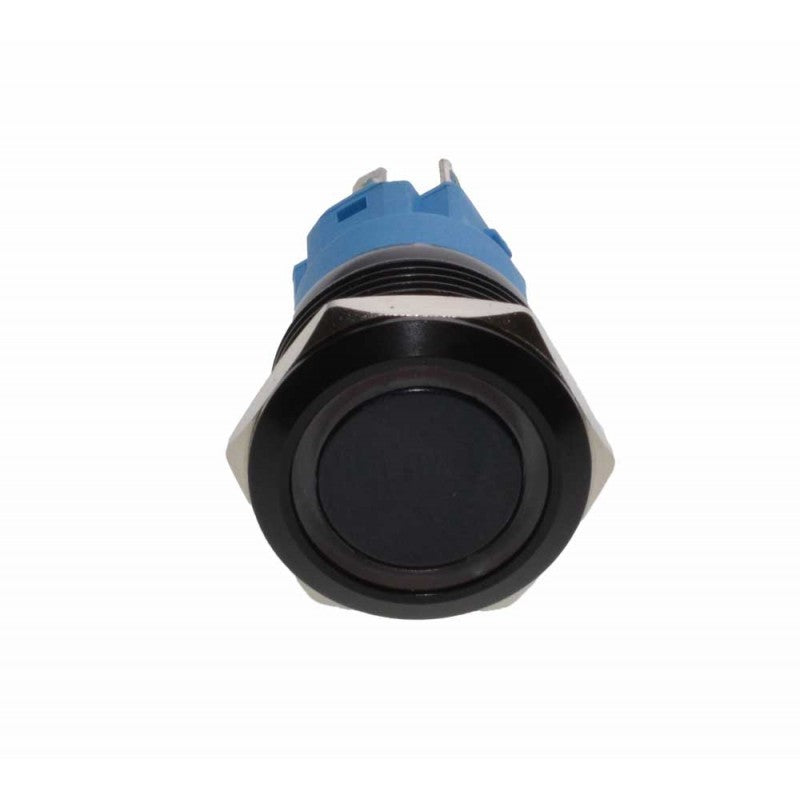

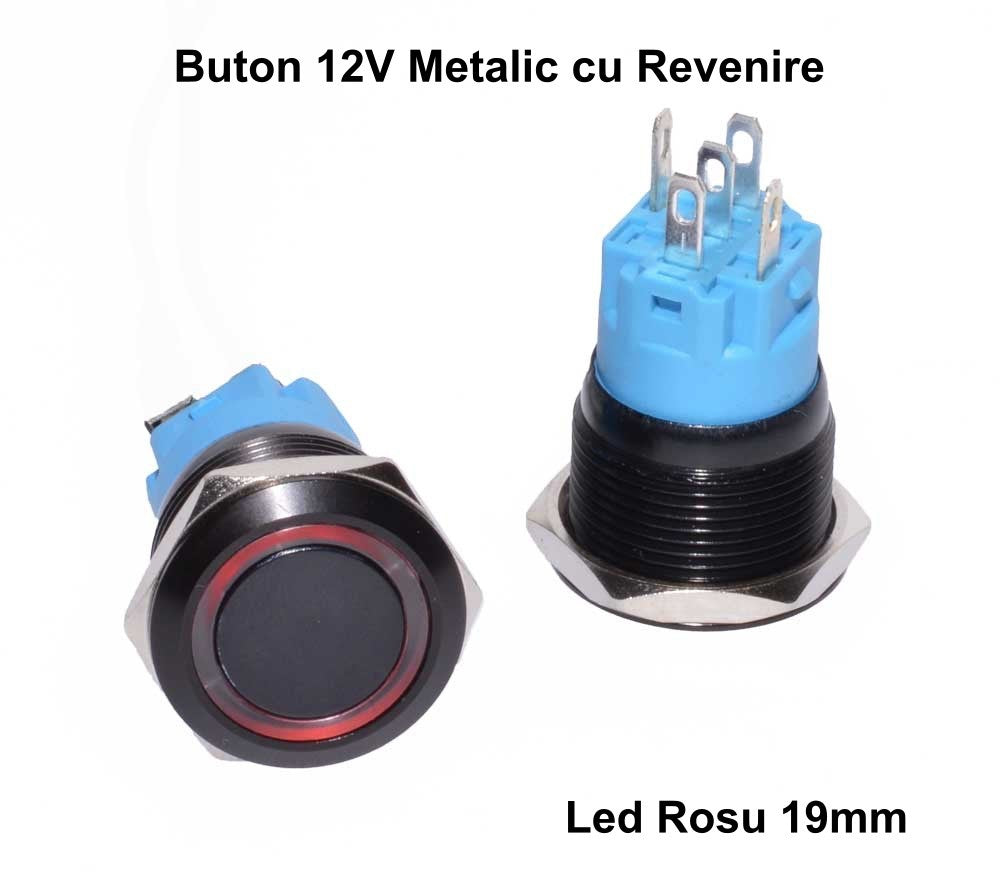

Black metallic push button with 19mm diameter and red light.
Button that can be used on the control panels of elevators, automatic machines in laundries
and other machines compatible with this type of push button.
Anti-vandal and waterproof metal button that is powered at 12V voltage.

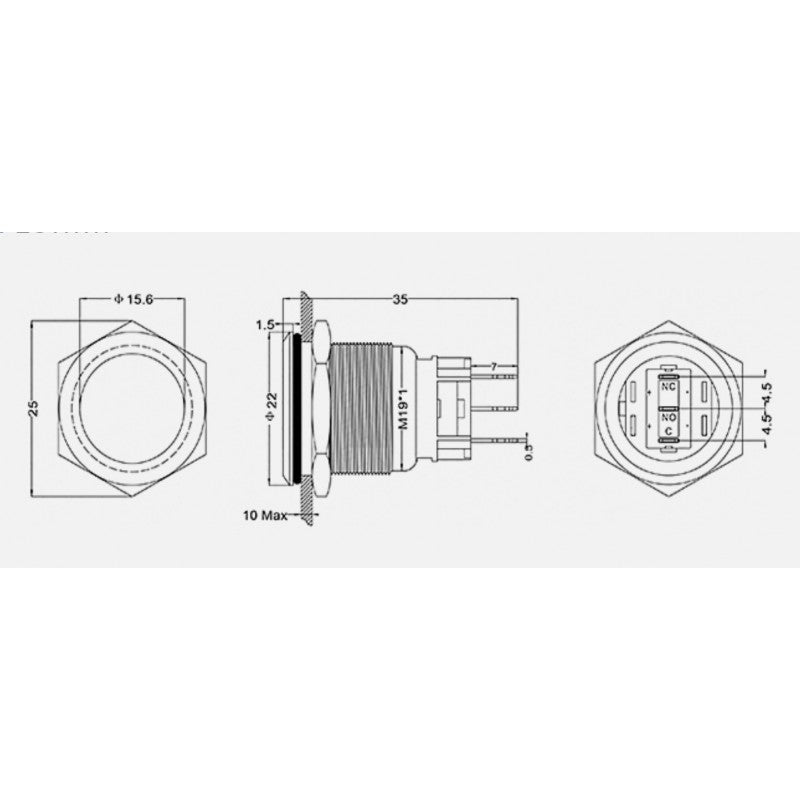

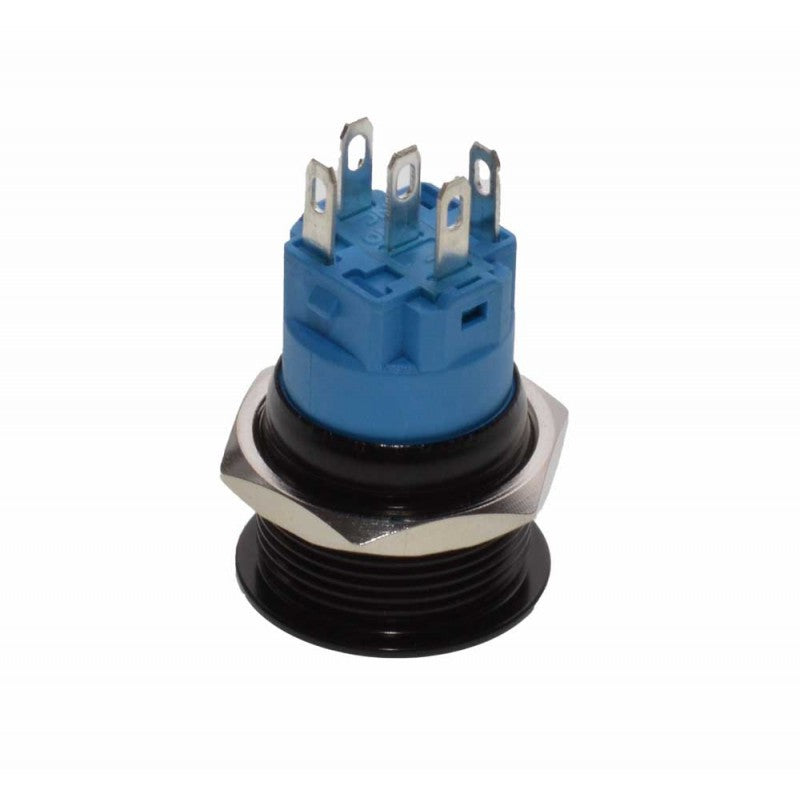

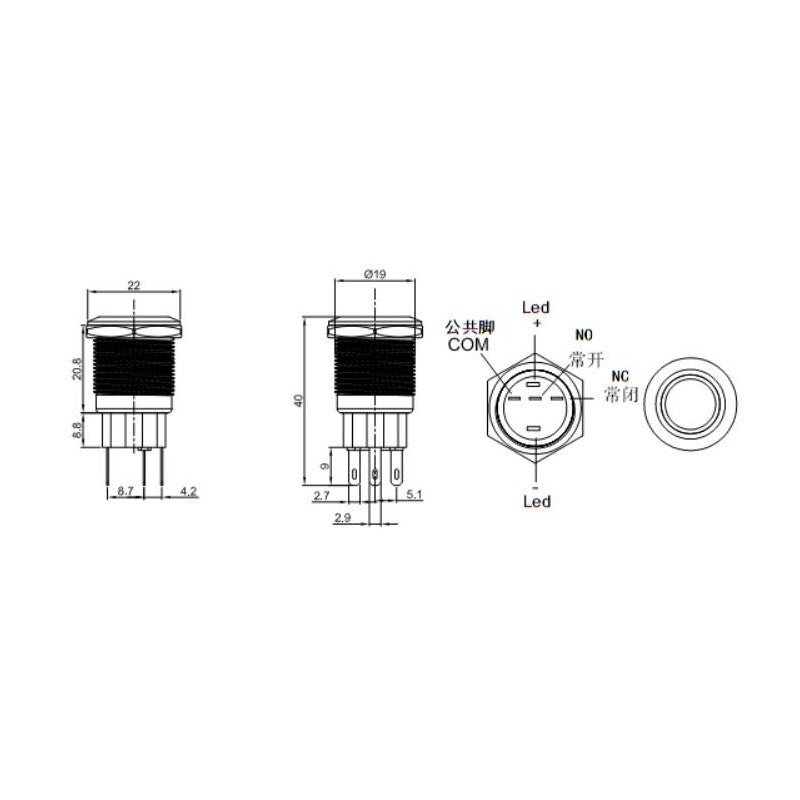

This push switch has 5 power connection pins, the diameter required for mounting is 19mm.
The button is made of aluminum and electrostatically painted in black and has a flat face with a ring

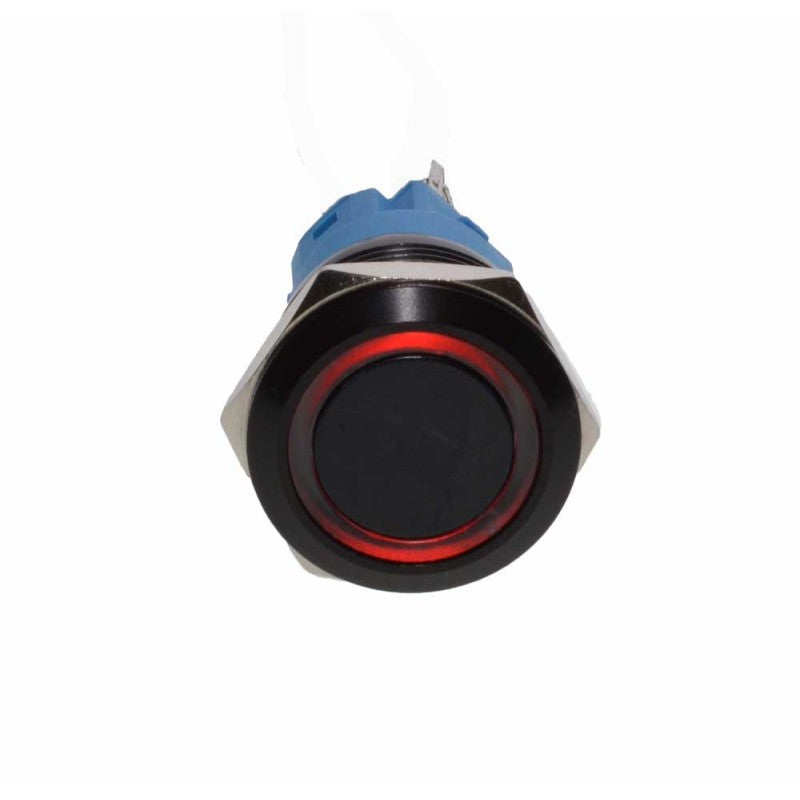

the led light, which surrounds the push button on the edge is chamfered for a quality finish.
Removable nut for fixing the button in the housing.
Silver alloy contacts.
Technical details:
Supply voltage: 12V
Supply current: 5A
Function: Momentary (press)
Light Color: Red
Lamp life: ≥ 50000h

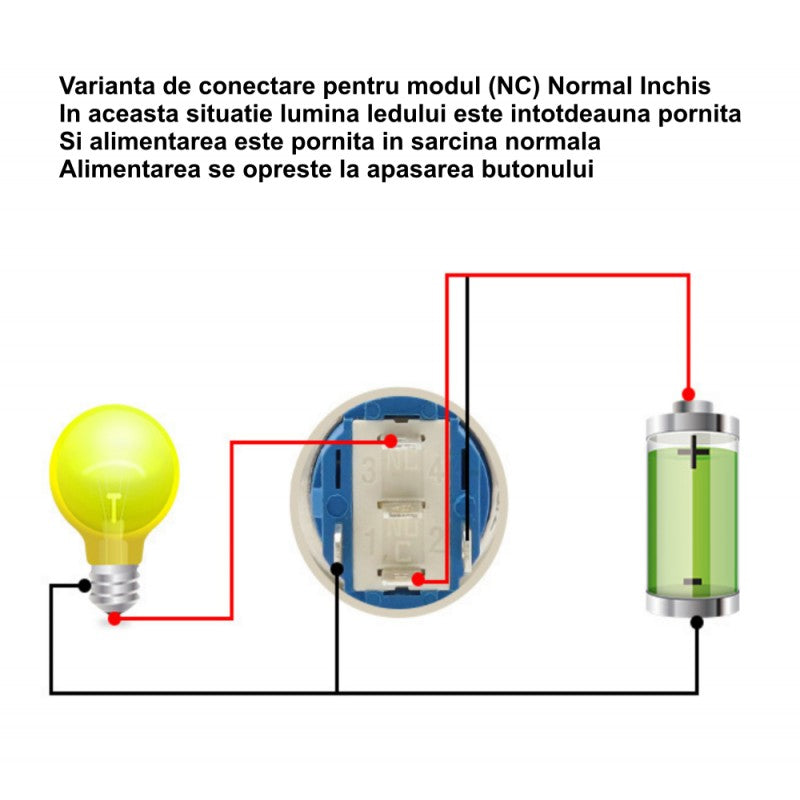

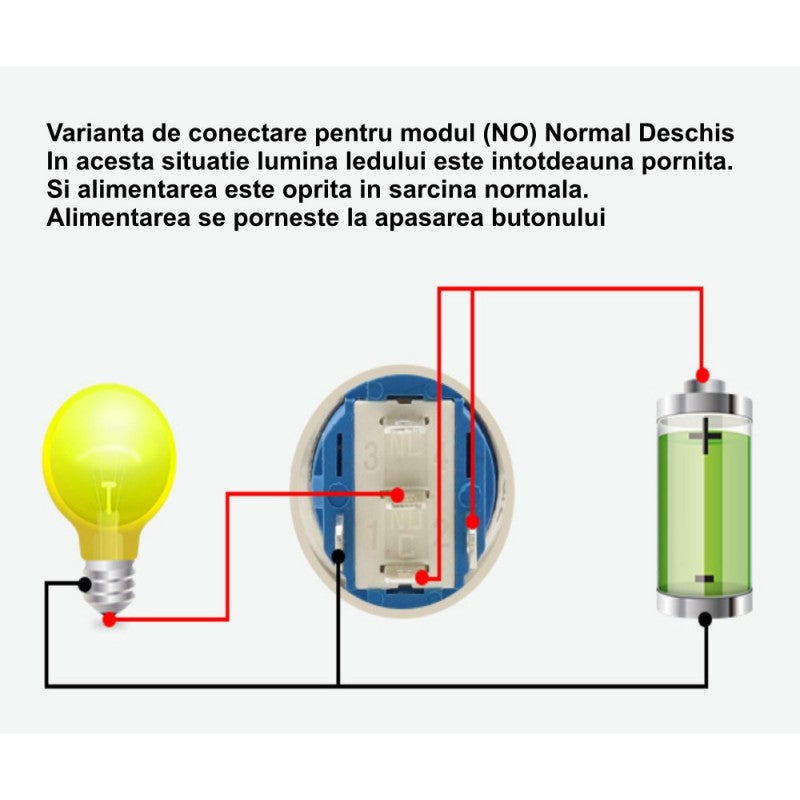

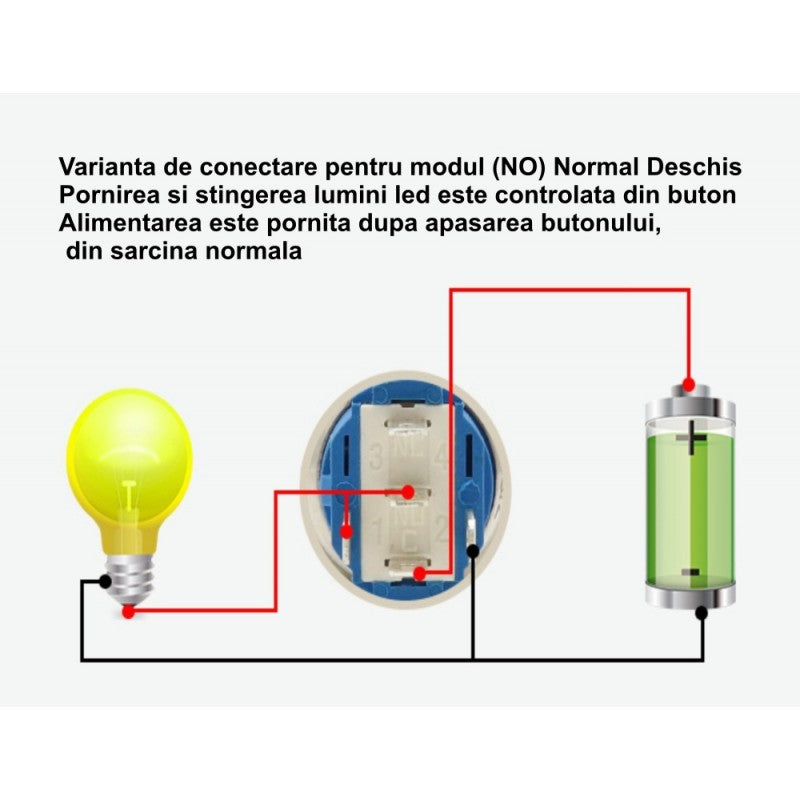

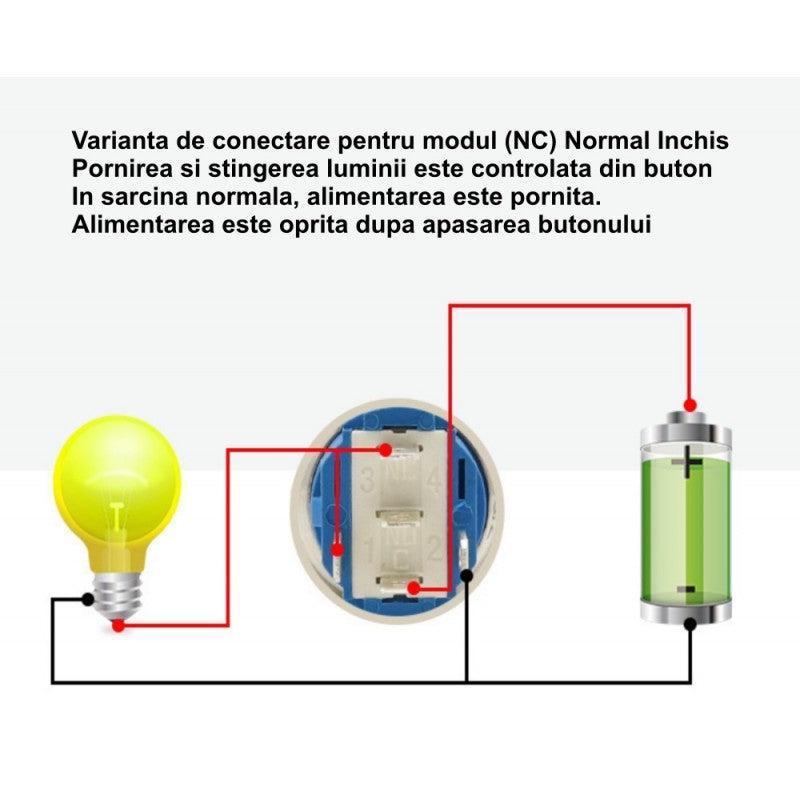

Connection terminals: 5 Pins with association: 1NO, 1NC, LED+, LED-, COM
Protection level: IP67 / IK09
Working pressure: 500gf
Mechanical life span: 500,000 cycles
Dielectric lifetime: 200,000 cycles
Operating temperature: 20 - 85˚C
Torque size: 5-14Nm
Duty cycle: 2.0mm
Contact resistance: 50mOhm Max
Insulation resistance: 1000mOhm Max
Product made under quality standards: CE, Rohs
Package Contents:
1 x Push Button Black 19mm/Red Led
Packaged: 20pcs/box
