Push Buton Negru 19mm/Green Led

Push Buton Negru 19mm / Green Led

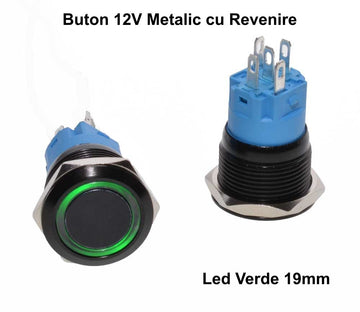

Black metallic push button with a diameter of 19mm and green light.

Button that can be used on the control panels of elevators, automatic machines in laundries

and other machines compatible with this type of push button.

Anti-vandal and waterproof metal button that is powered at 12V voltage.

This push switch has 5 power connection pins, the diameter required for mounting is 19mm.

The button is made of aluminum and electrostatically painted in black and has a flat face with a ring

the led light, which surrounds the push button on the edge is chamfered for a quality finish.

Removable nut for fixing the button in the housing.

Silver alloy contacts.

Technical details:

Supply voltage: 12V

Supply current: 5A

Function: Momentary (press)

Light Color: Green

Lamp life: ≥ 50000h

Connection terminals: 5 Pins with association: 1NO, 1NC, LED+, LED-, COM

Protection level: IP67 / IK09

Working pressure: 500gf

Mechanical life span: 500,000 cycles

Dielectric lifetime: 200,000 cycles

Operating temperature: 20 - 85˚C

Torque size: 5-14Nm

Duty cycle: 2.0mm

Contact resistance: 50mOhm Max

Insulation resistance: 1000mOhm Max

Product made under quality standards: CE, Rohs

Package Contents:

1 x Push Buton Negru 19mm/Green Led

Packaged: 20pcs/box
