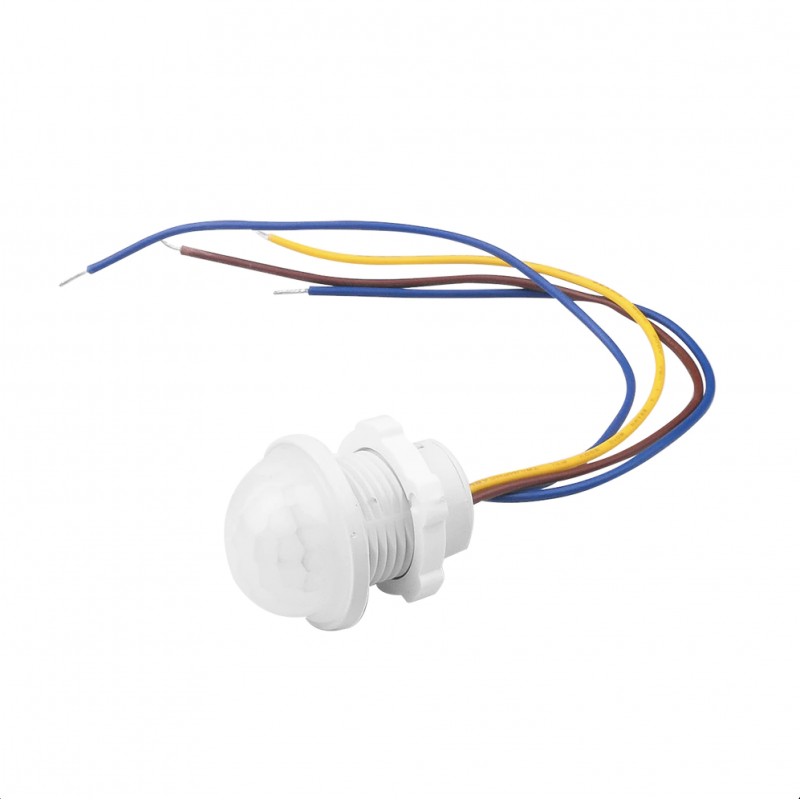

Senzor Pir 110-220V cu 4 Fire 28x37mm

Senzor PIR 110-220V cu 4 Fire 28x37mm

Mini PIR sensor with human body temperature detection and range between 4-6m.

This plastic mini sensor has 4 connection wires, two for power (the long ones) and two for the output (the short ones), with a detection angle of up to 110˚- 120˚.

The sensor is powered at a voltage between 110V - 220V AC and can be mounted on various lighting fixtures such as: lamp, chandelier, lamp, wall lamp, projector, light bulb, etc.

Fields of application of this sensor: corridors, bathrooms, basements, warehouses, garages, cars, light boxes or advertising, etc.

With the help of the sensors installed in the lighting systems, it is possible to achieve the greatest economy of electric current and thus benefit the material part (budget) as well as help the environment.

The PIR sensor works as an automatic switch in a lightless environment. When someone enters the detection area, the probe will automatically turn on the light when sensing the human body temperature. It will automatically turn off the light when it no longer senses the body temperature.

Photosensitive cell with infrared temperature detection.

The sensor has a screw fixing nut and a removable connection plug, with the help of this plug the sensor can be fixed more easily.

Technical details:

• Supply voltage: 110V-220V AC
• Working voltage: 85V-265V
• Charging power: 3-18W
• Ignition range: 20-25 seconds
• Light control: 10Lux
• Detection angle: 110˚- 120˚
• Detection distance: 3-6m
• Minimum distance for mounting height: 1.5m
• Size: 28 x 37mm

NOTE!

The supply wires are longer, the output wires are shorter.

Package Contents:

• 1 x Senzor PIR 110-220V cu 4 Fire 28x37mm
